Hyundai Genesis (DH): Hydraulic System / Valve Body Components and Components Location
Hyundai Genesis (DH) 2013-2016 Service Manual / Automatic Transmission System (SBC) / Hydraulic System / Valve Body Components and Components Location

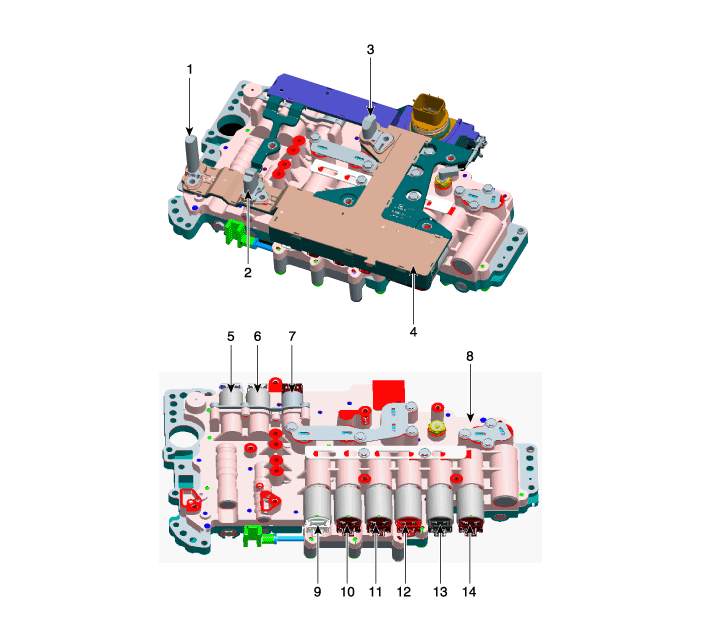

| Components Location |
| 1. Input speed sensor 2. Middle speed sensor 3. Output speed sensor 4. E-Module 5. Line pressure control solenoid valve 6. Damper clutch control solenoid valve 7. ON/OFF solenoid valve | 8. Valve body assembly 9. 8LR/B control solenoid valve 10. 6/C control solenoid valve 11. 27/B control solenoid valve 12. 35R/C control solenoid valve 13. 4&OD/C control solenoid valve 14. UD/C control solenoid valve |
Description The valve body is essential to automatic transmission control and consists of various valves used to control the oil feed from the oil pump.
