Hyundai Genesis (DH): Tire Pressure Monitoring System / TPMS Receiver Schematic Diagrams

Hyundai Genesis (DH) 2013-2016 Service Manual / Suspension System / Tire Pressure Monitoring System / TPMS Receiver Schematic Diagrams

Circuit Diagram

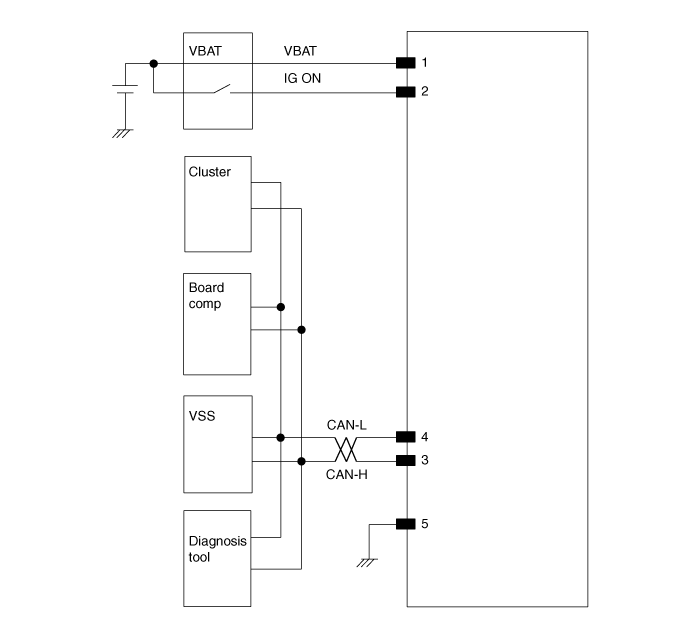

1.	Circuit diagram

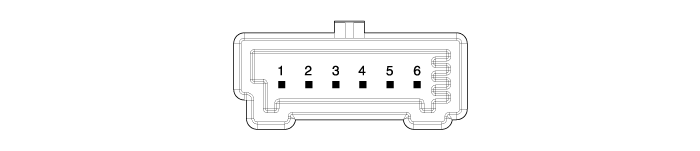

2.	Receiver connector terminals.

Receiver connector function.

No	Function	Description
1	Battery	VBAT
2	IG ON	Battery to IG ON
3	CAN_High	CAN_High
4	CAN_Low	CAN_Low
5	Ground	Battery to ground
6	-	-
