Hyundai Genesis (DH): Cylinder Block / Water Jacket Seperator Components and Components Location
| Components |

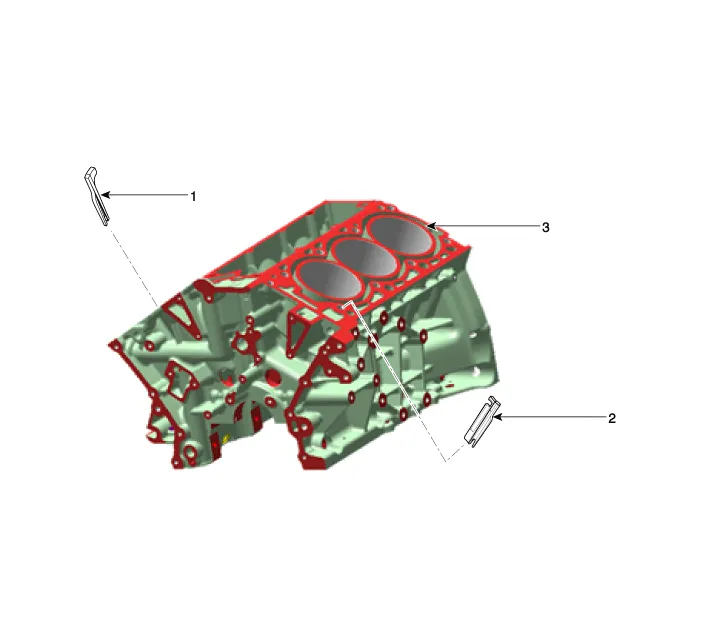

| 1. Water jacket separator 1# 2. Water jacket separator 2# | 3. Cylinder block |
Components 1. Piston ring2. Piston3. Connecting rod4. Connecting rod upper bearing5. Piston pin6. Connecting rod lower bearing7. Connecting rod bearing cap8.
Removal 1. Remove the LH/RH cylinder head assembly. (Refer to Cylinder Head Assembly - "Cylinder Head") 2. Remove the water jacket separator 1# (A) and 2# (B).
