Hyundai Genesis (DH): Brake System / Stop Lamp Switch Components and Components Location

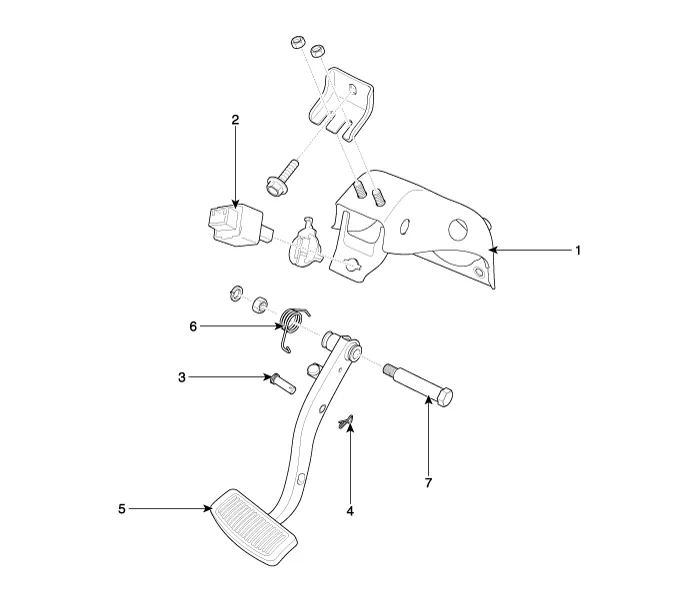

| Components Location |
| 1. Brake pedal member assembly 2. Stop lamp switch 3. Clevis pin 4. Snap pin | 5. Brake pedal stopper 6. Return spring 7. Bolt |
Removal 1. Remove the rear wheel & tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) 2. Loosen the guide rod bolt (B) and pivot the caliper up out of the way.
Description The stop lamp switch plays the role of supplying signals to turn on stop lamps and convenience devices (HECU, ECU, BCM, SML, etc.). The stop lamp switch is a system for drivers to express their intention to the brake by press the brake pedal.
