Hyundai Genesis (DH): Airbag Module / Side Airbag (SAB) Module Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Restraint / Airbag Module / Side Airbag (SAB) Module Components and Components Location

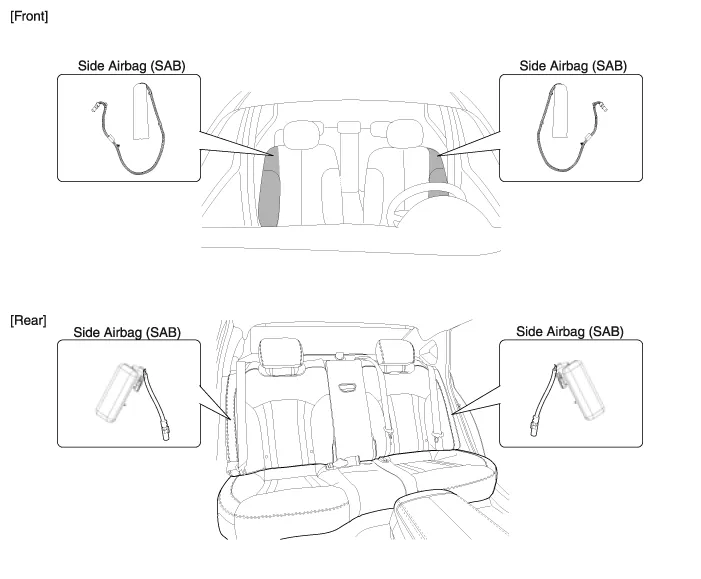

Components

    Description The Side Airbags (SAB) are installed inside the front seat and protects the driver and passenger from danger when a side crash occurs.

    Removal Front Side Airbag 1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work. 2. Remove the front seat assembly.
