Hyundai Genesis (DH): ESC(Electronic Stability Control) System / Rear Wheel Speed Sensor Components and Components Location

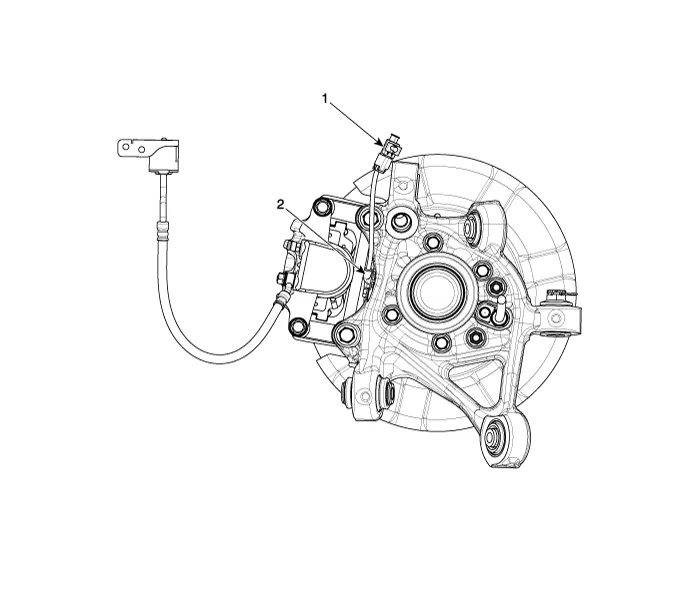

| Components |
| 1. Rear wheel speed sensor cable | 2. Rear wheel speed sensor |
Removal [4WD] 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the front wheel and tire (A) from the front hub.
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the rear wheel and tire (A) from the rear hub. Tightening torque : 88.
