Hyundai Genesis (DH): Front / Rear Parking Assist System / Components and Components Location

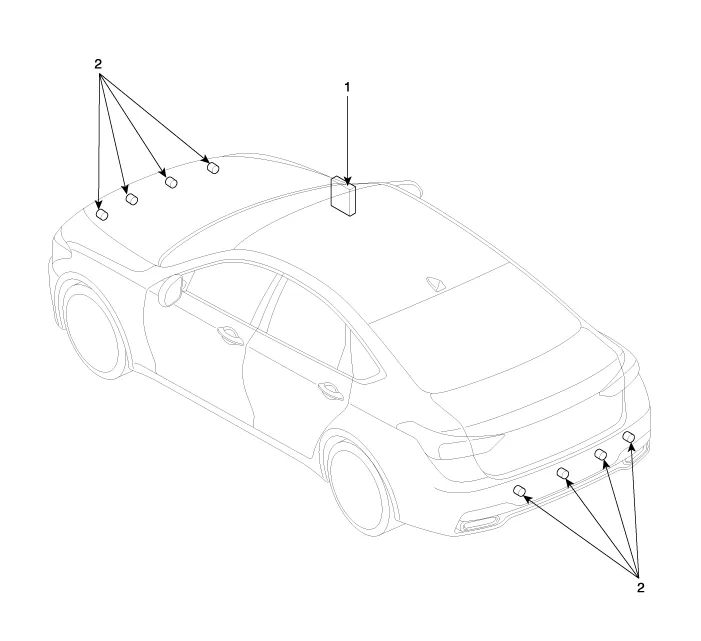

| Component Location |
| 1. BCM (Body Control Module) | 2. Ultrasonic sensor |
Rear parking assist control unit function is built in BCM (body control unit). |
Specification ItemSpecificationUltrasonic sensorVoltage ratingDC 12 VDetecting range40 cm ~ 120 cmOperation voltageDC 9 ~ 16 VOperation currentMAX 300 mAOperation temperature-30
System Overview RPAS (Rear Parking Assist System) is an electronic driving aid that warns the driver to be cautious while parking or driving at low speed.
