Hyundai Genesis (DH): Hood / Hood Latch Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Hood / Hood Latch Components and Components Location

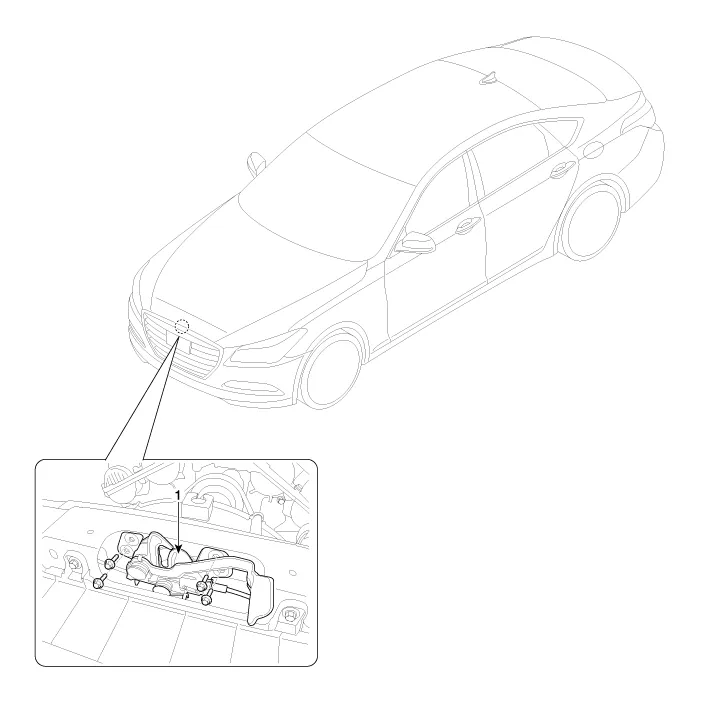

Component Location

1. Hood latch assembly


    Replacement 1. After loosening the mounting screw, remove the hood latch release handle (A). 2. Install in the reverse order of removal.

    Replacement 1. Remove the front bumper. (Refer to Front bumper - "Front bumper cover") 2. Remove the active air flap (AAF). (Refer to Engine Mechanical System - "Active Air Flap(AAF)") 3.
