Hyundai Genesis (DH): Air Conditioning System / Cluster Ionizer Repair procedures

Hyundai Genesis (DH) 2013-2016 Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / Cluster Ionizer Repair procedures

Inspection
1.
Press the MODE switch more than 4 times within 2 seconds while pressing the OFF switch.
Display
Fail description
00
Normal
51
Cluster ion generator fault

* For diagnostic procedure, refer to DTC guide.
Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the glove box upper cover.
(Refer to Body - "Crash Pad Main Lower Assembly")
3.
Loosen the mounting screw and then remove the shower duct (A).

4.
Disconnect the evaporator temperature sensor connector, and then remove the cluster ionizer (A).

5.
Install in the reverse order of removal.

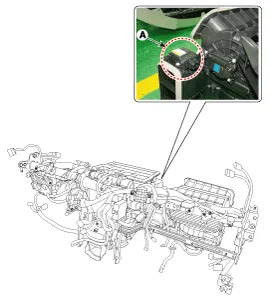

    Description The cluster ionizer disinfects and decomposes bad smell from the air-conditioner or inflow air in order to clean the indoor air of a vehicle.
