Hyundai Genesis (DH): Front Axle Assembly / Front Hub / Knuckle / Tone Wheel Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Driveshaft and axle / Front Axle Assembly / Front Hub / Knuckle / Tone Wheel Components and Components Location

Components

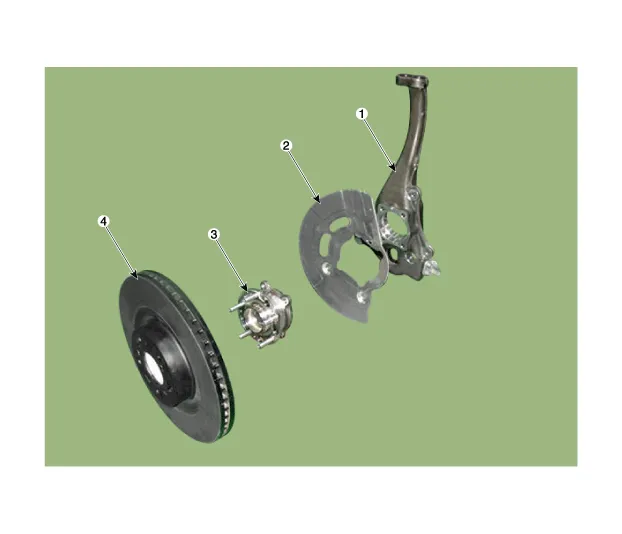

1. Front knuckle assembly
2. Dust cover
3. Front hub bearing
4. Brake disc

    Replacement [4WD] 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel and tire (A) from the front hub     Be careful not to damage the hub bolts when removing the front wheel and tire.
