Hyundai Genesis (DH): Air Conditioning System / Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / Components and Components Location

Component Location Index
Engine Room

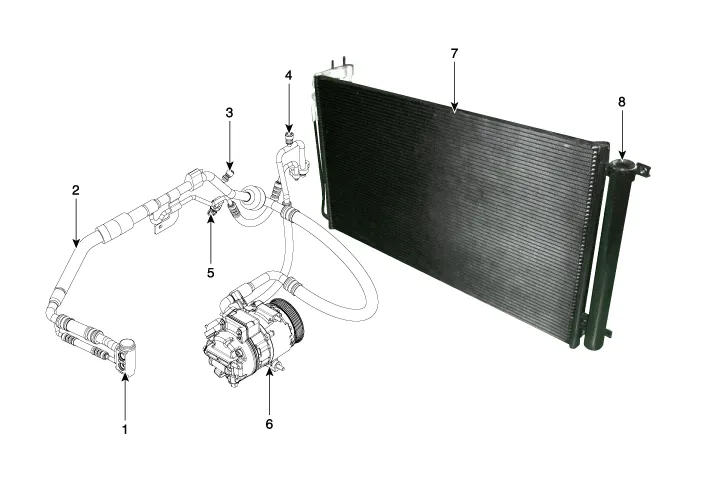

[Lambda Engine]

1. Expansion Valve
2. Suction & Liquid Tube Assembly
3. Service Port (Low Pressure)
4. Service Port (High Pressure)
5. A/C Pressure Transducer (APT)
6. Compressor
7. Condenser
8. Receiver-drier

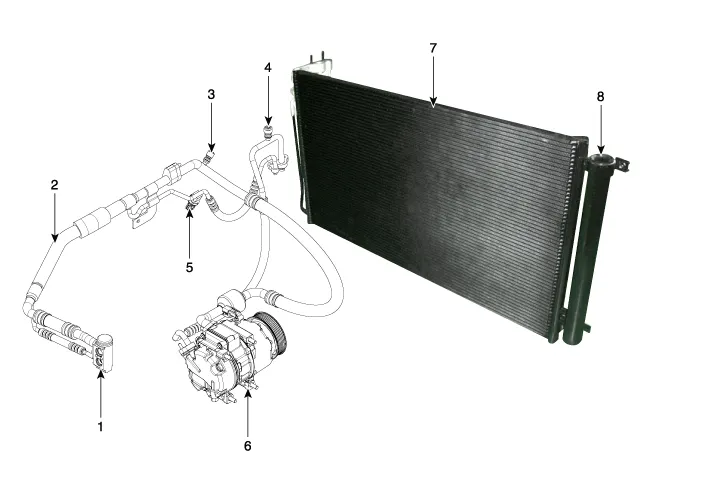

[Tau Engine]

1. Expansion Valve
2. Suction & Liquid Tube Assembly
3. Service Port (Low Pressure)
4. Service Port (High Pressure)
5. A/C Pressure Transducer (APT)
6. Compressor
7. Condenser
8. Receiver-drier

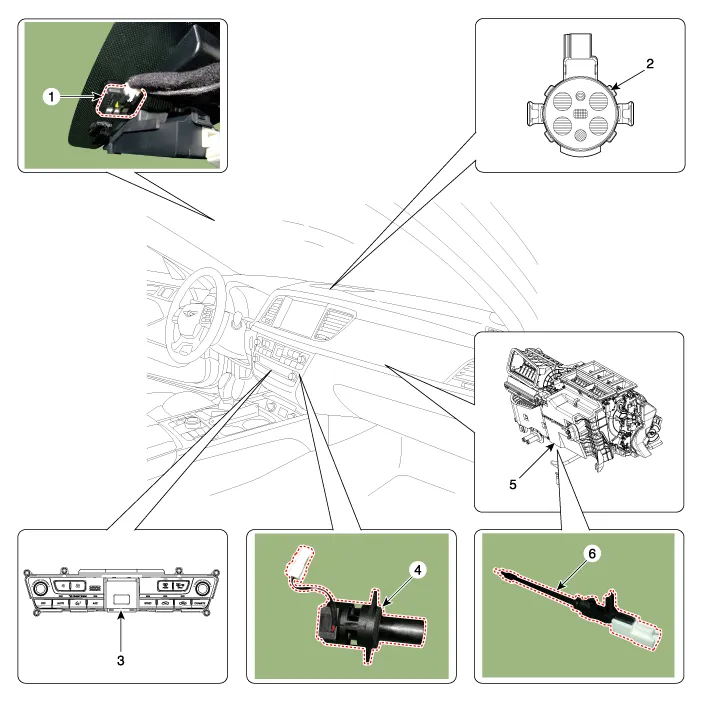

Interior

1. Auto Defogging Sensor
2. Photo Sensor
3. Heater & A/C Control Unit
4. Interior Temperature Sensor
5. Heater & Blower Unit
6. Evaporator Temperature Sensor

    Refrigerant System Service Basics Refrigerant Recovery Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE J2210 to remove HFC-134a(R-134a) from the air conditioning system.

    Oil Specification 1. The HFC-134a system requires synthetic (PAG) compressor oil whereas the R-12 system requires mineral compressor oil. The two oils must never be mixed.
