Hyundai Genesis (DH): Front Door / Front Door Module Components and Components Location

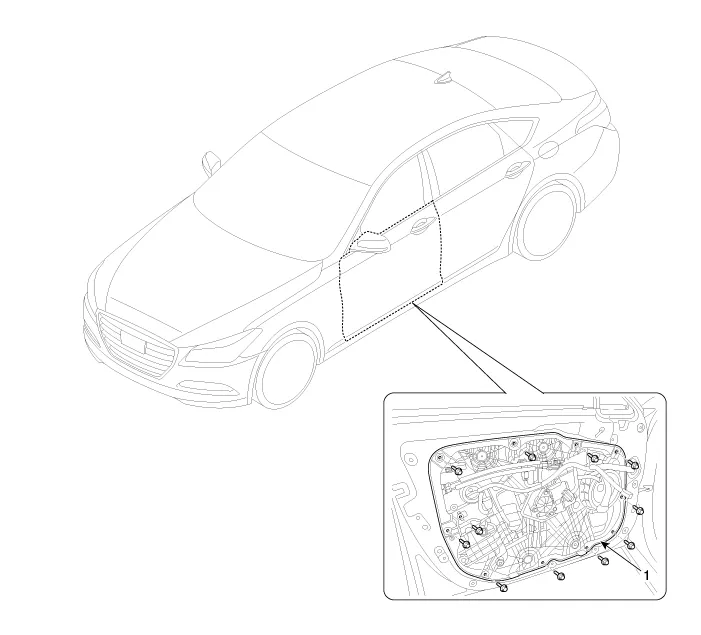

| Component Location |
| 1. Front door module |
Replacement 1. Remove the front door trim. (Refer to Front Door - "Front Door Trim") 2. After loosening the mounting screws, remove the front door belt outside weatherstrip (A).
Replacement 1. Remove the front door window glass. (Refer to Front Door - "Front Door Window Glass") 2. Remove the front door outside handle. (Refer to Front Door - "Front Door Outside Handle") 3.
