Hyundai Genesis (DH): Front Door / Front Door Module Repair procedures

Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Module Repair procedures

Replacement
1.
Remove the front door window glass.
(Refer to Front Door - "Front Door Window Glass")
2.
Remove the front door outside handle.
(Refer to Front Door - "Front Door Outside Handle")
3.
Loosen the front door outside handle base mounting bolt (A).

4.
Disconnect the outside rear view mirror connector (A).

5.

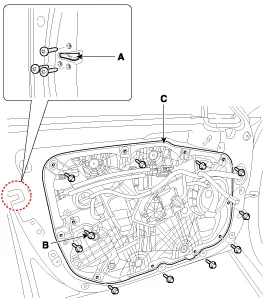

Loosen the front door module mounting bolts and latch (A) mounting screws. After unscrewing the lower channel screw (B) as loosely as possible, remove the front door module (C).
Tightening torque :
(A) : 6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)
(B) : 3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)
(C) : 7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

6.
Disconnect the connectors (A) and front door module wiring harness.

7.
Remove the front door latch assembly.
(Refer to Front Door - "Front Door Latch")
8.
Remove the front speaker.
(Refer to Body Electrical System - "Speakers")
9.
Remove the front power window motor.
(Refer to Body Electrical System - "Power Window Motor")
10.
Install in the reverse order of removal.


    Component Location 1. Front door module

    Component Location 1. Front door outside handle
