Hyundai Genesis (DH): Brake System / Front Disc Brake Components and Components Location
| Components |

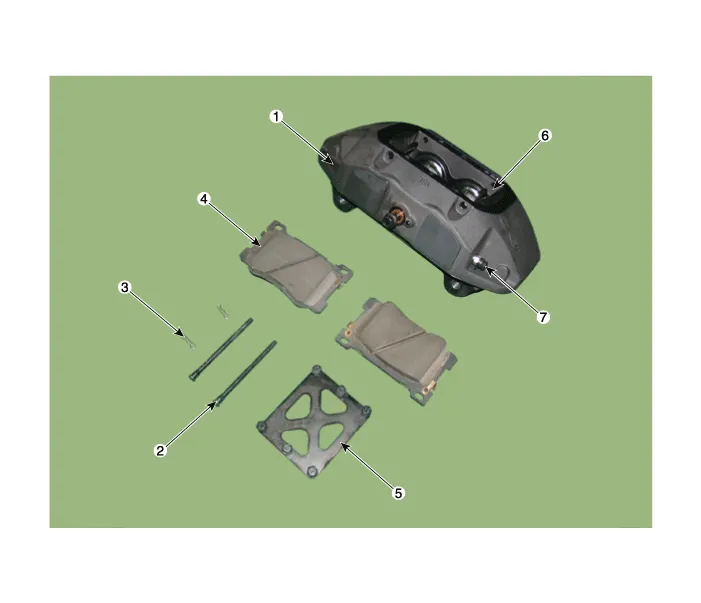

| 1. Caliper body 2. Guide pin 3. Locking pin 4. Brake pad | 5. Cover plate 6. Pad spring 7. Bleed screw |
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 3.
Removal [4 Piston Type] 1. Remove the front wheel & tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) 2.
