System operation

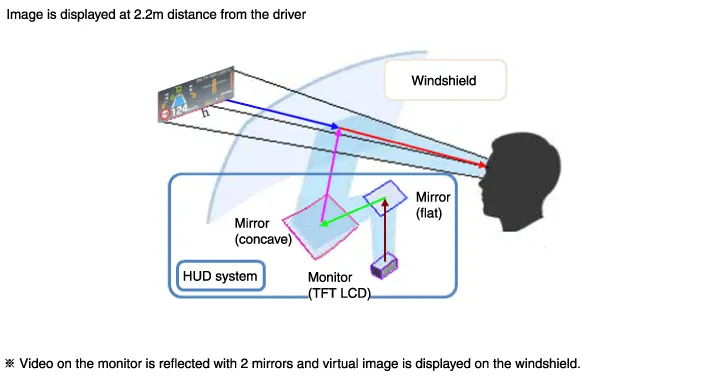

HUD system displays various information on the windshield
glass which minimizes the driver |
Components Location 1. Head Up Display (HUD)2. Rheostat switch3. Cluster4. Light sensor5. Windshield glass (Wedge film applied)
Diagnosis With GDS 1. BSD system defects can be quickly diagnosed with the GDS. GDS operates actuator quickly to monitor, input/output value and self diagnosis. 2. Connect the cable of GDS to the data link connector in driver side crash pad lower panel, and turn on the GDS.
