Hyundai Genesis (DH): Head Up Display System / Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Head Up Display System / Components and Components Location

Components Location

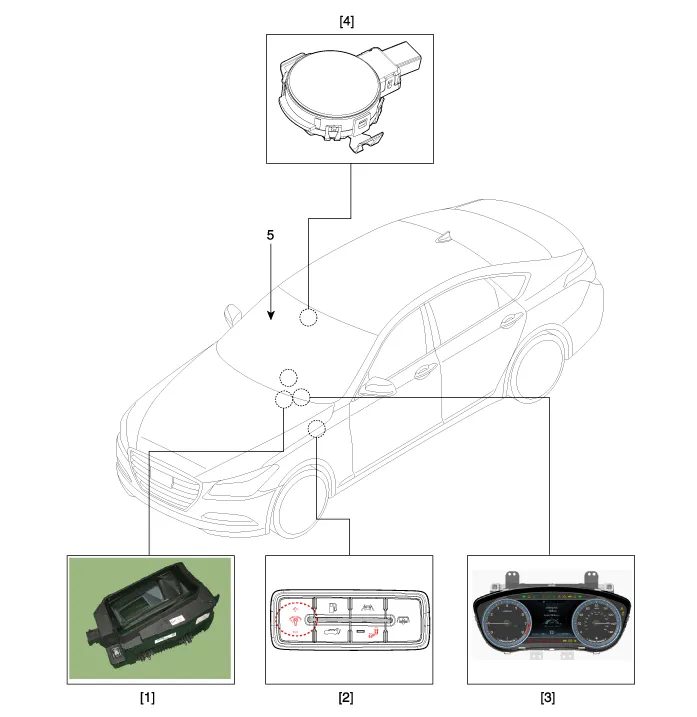

1. Head Up Display (HUD)
2. Rheostat switch
3. Cluster
4. Light sensor
5. Windshield glass (Wedge film applied)

    Description 1. System operation HUD system displays various information on the windshield glass which minimizes the driver

    Other information:

    Hyundai Genesis (DH) 2013-2016 Service Manual: Auto Light Sensor Repair procedures

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the photo & auto light sensor. (Refer to Windshield Wiper/Washer - "Rain Sensor") Installation 1. Install the auto light sensor. 2. Connect the negative (-) battery terminal.

    Hyundai Genesis (DH) 2013-2016 Service Manual: Blind Spot Detection Unit Repair procedures

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear bumper. (Refer to Body - "Rear Bumper") 3. Remove the BSD unit (A) after loosening the mounting nuts.     Take care not to separate the bracket from rear bumper when removing the BSD sensor.
