Hyundai Genesis (DH): Parking Brake System / Electric Parking Brake (EPB) Components and Components Location

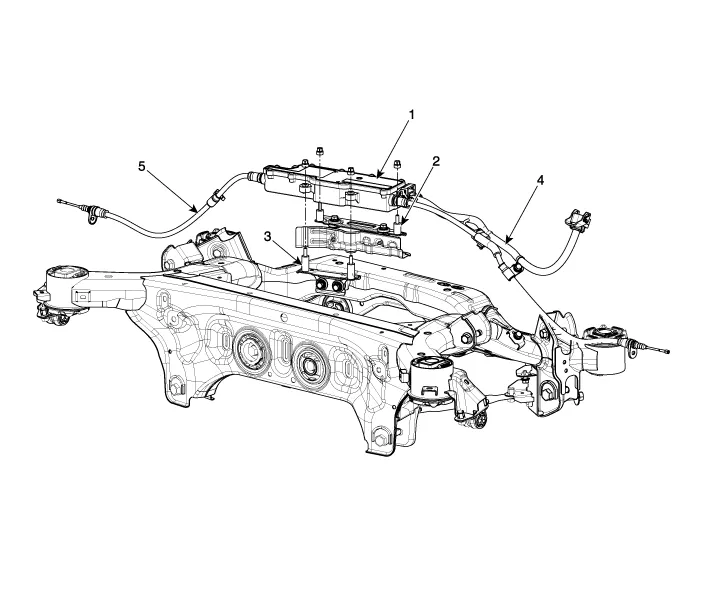

| Components |
| 1. EPB 2. Bracket No.1 3. Bracket No.2 | 4. EPB Extension wiring harness 5. Parking brake cable |
Description The EPB is an electronic parking brake. The EPB is different from existing parking systems which are operated with the brake pedal or the lever type.
Schematic Diagram 1. Circuit diagram 2. Connector terminal information TerminalDescriptionCurrent (m/A) MAXMIN1Battery (+)12.5-2Battery12.5-3Parking brake switch20-4---5---6Electric parking brake switch signal 41057Electric parking brake switch signal 31058C-CAN LOW30209---10---11IGN20512---13---14Electric parking brake switch signal 210515Electric parking brake switch signal 110516C-CAN HIGH302017Ground12.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: General Safety Information and Caution
Instructions When Handling Refrigerant 1. R-134a liquid refrigerant is highly volatile. A drop on the skin of your hand could result in localized frostbite. When handling the refrigerant, be sure to wear gloves. 2. It is standard practice to wear goggles or glasses to protect your eyes, and gloves to protect your hands.
Hyundai Genesis (DH) 2013-2016 Service Manual: Mode Control Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the mode control actuator connector. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4. Verify that the mode control actuator operates to the vent mode when connected in reverse.
