Hyundai Genesis (DH): Parking Brake System / Electric Parking Brake (EPB) Schematic Diagrams

Hyundai Genesis (DH) 2013-2016 Service Manual / Brake System / Parking Brake System / Electric Parking Brake (EPB) Schematic Diagrams

Schematic Diagram
1.

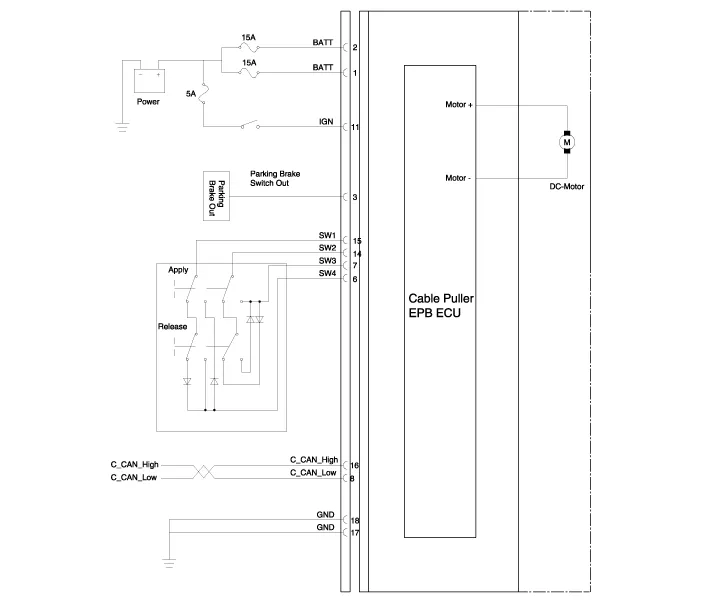

Circuit diagram

2.

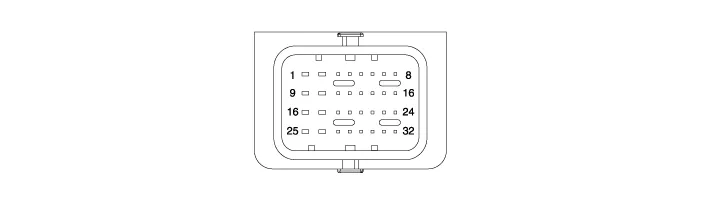

Connector terminal information

Terminal
Description
Current (m/A)
MAX
MIN
1
Battery (+)
12.5
-
2
Battery
12.5
-
3
Parking brake switch
20
-
4
-
-
-
5
-
-
-
6
Electric parking brake switch signal 4
10
5
7
Electric parking brake switch signal 3
10
5
8
C-CAN LOW
30
20
9
-
-
-
10
-
-
-
11
IGN
20
5
12
-
-
-
13
-
-
-
14
Electric parking brake switch signal 2
10
5
15
Electric parking brake switch signal 1
10
5
16
C-CAN HIGH
30
20
17
Ground
12.5
-
18
Ground
12.5
-
19
-
30
-
20
-
-
-
21
-
-
-
22
-
-
-
23
-
-
-
24
-
-
-
25
-
-
-
26
-
-
-
27
-
-
-
28
-
-
-
29
-
-
-
30
-
-
-
31
-
-
-
32
-
-
-

    Components 1. EPB2. Bracket No.13. Bracket No.24. EPB Extension wiring harness5. Parking brake cable

    Removal 1. Raise the vehicle, and make sure it is securely supported. 2. Remove the rear tire and wheel. Tightening torque : 88.3 ~ 107.9 N.
