Hyundai Genesis (DH): Brake System / Brake Line Components and Components Location

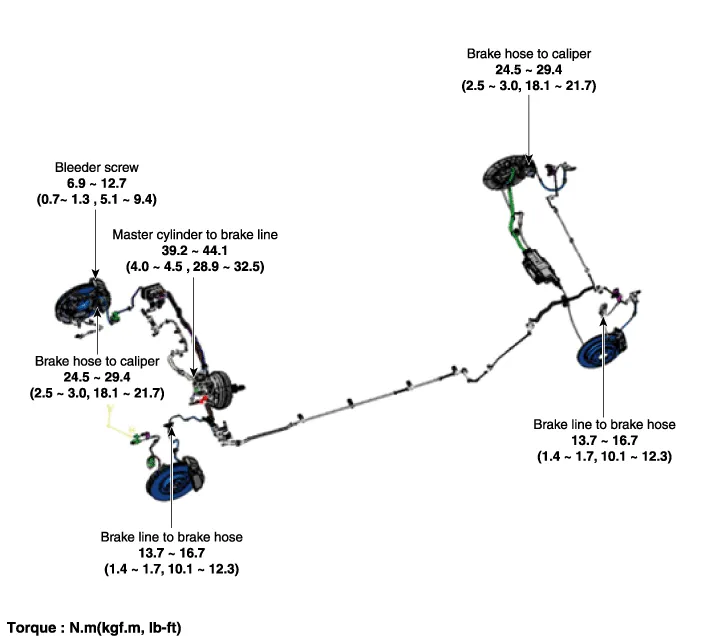

| Components |
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Disconnect the ECM connector (A) and TCM connector (B). IDB (C) and then remove the noise barrier (D).
Removal 1. Disconnect the brake fluid level switch connector, and remove the reservoir cap. 2. Remove the brake fluid from the master cylinder reservoir with a syringe.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Receiver-Drier Repair procedures
Replacement 1. Remove the condenser. 2. Remove the cap (B) on the bottom of the condenser with the L wrench (A). Tightening torque : 9.81 ~ 14.71 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft) 3. Remove the receiver-drier (A) from condenser using a long nose plier.
Hyundai Genesis (DH) 2013-2016 Service Manual: Heater Unit Components and Components Location
Component Location Components (1) 1. Shower duct (Left)2. Mode actuator (LH)3. Temperature control actuator (LH)4. Temperature door lever (Left)5. Mode actuator (A)6. Console temperature actuator (A)7. Console mode actuator ON/OFF8. Heater case (Left)9.
