Hyundai Genesis (DH): Automatic Transmission System / Automatic Transmission Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Automatic Transmission System (SBC) / Automatic Transmission System / Automatic Transmission Components and Components Location

Components Location

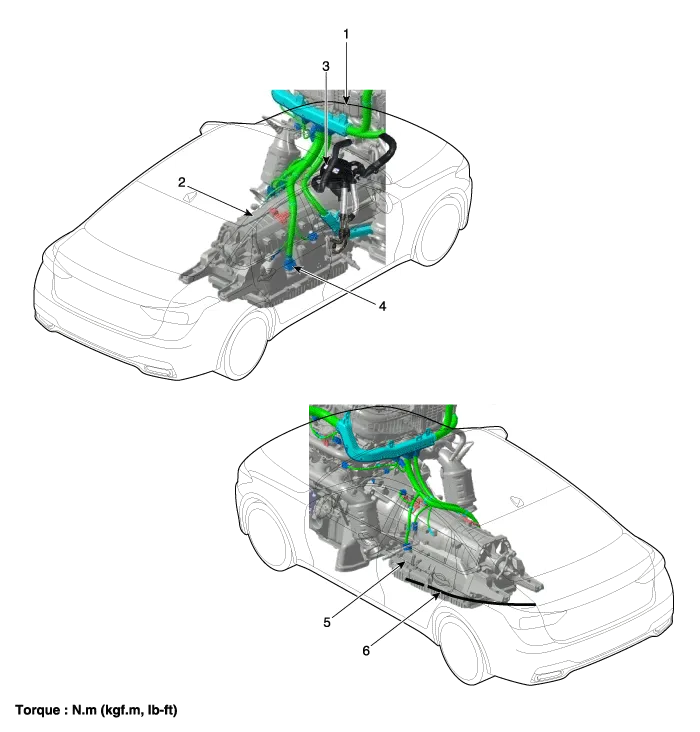

2WD

1. Engine
2. Transmission
3. ATF warmer
4. Transmission connector(E-Module connector)
5. Inhibitor switch
6. Shift cable

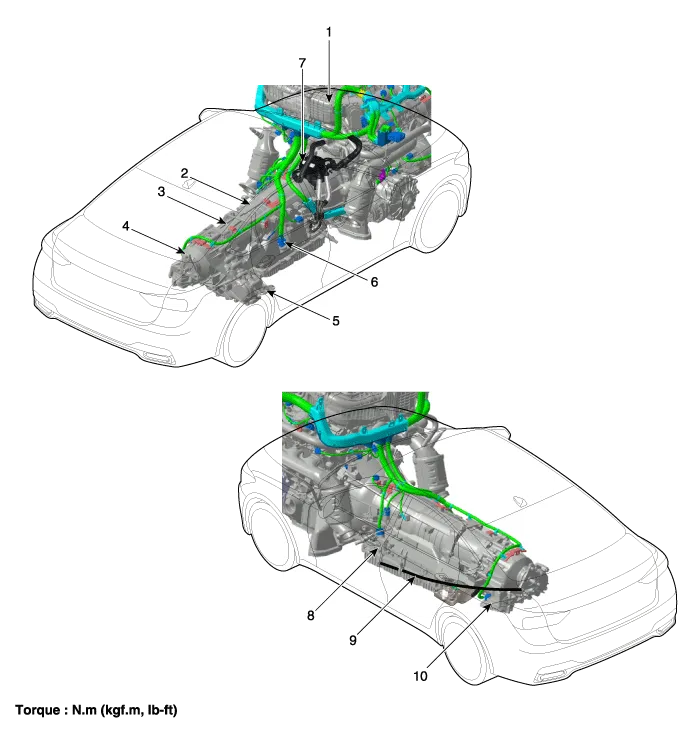

AWD

1. Engine
2. Transmission
3. Transfer case adapter
4. Transfer case
5. Transmission cross member
6. Transmission connector
7. ATF warmer
8. Inhibitor switch
9. Shift cable
10. Transfer case ECU
