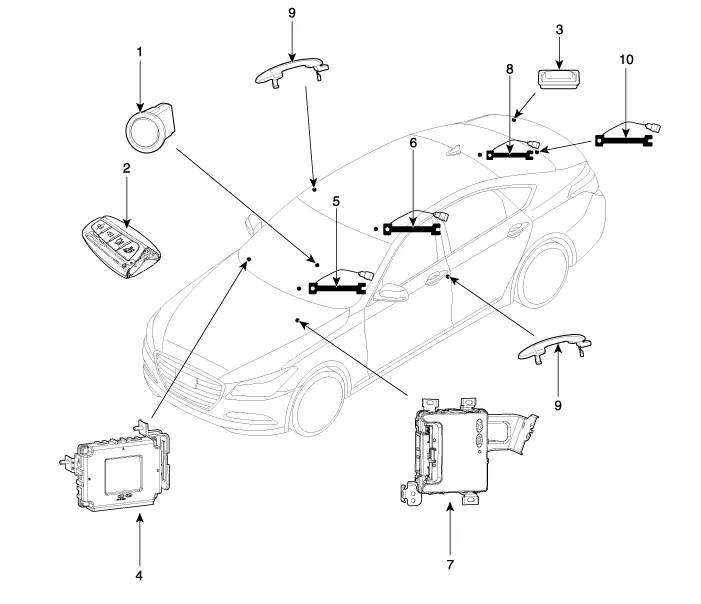

Component Location

1. Start Stop Button(SSB)
2. FOB key
3. Trunk lid switch
4. Body control module (BCM)
5. Interior antenna 1
6. Interior antenna 2
7. Smart key unit
8. Trunk antenna
9. Door handle & door antenna
10. Bumper antenna
