Hyundai Genesis (DH): Button Engine Start System / Schematic Diagrams

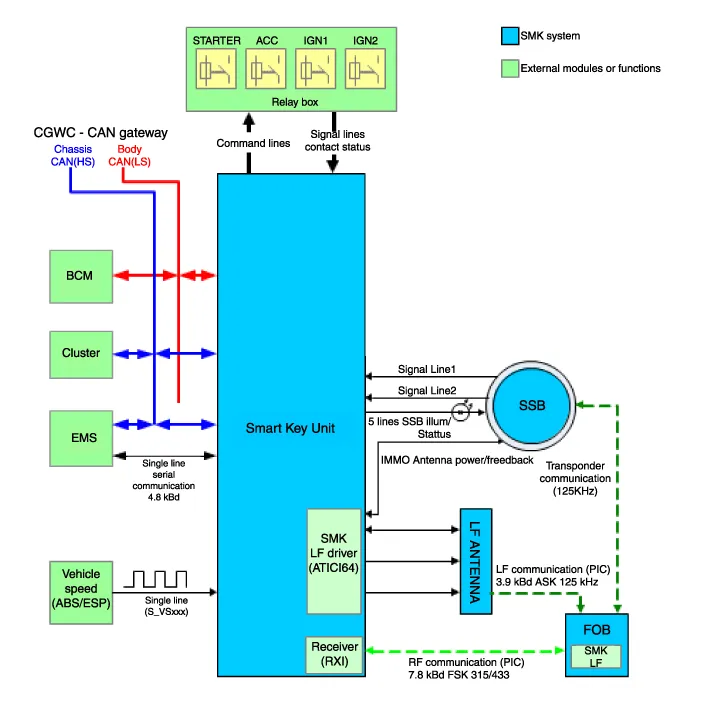

| Circuit Diagram (1) |
Component Location 1. Start Stop Button(SSB)2. FOB key3. Trunk lid switch4. Body control module (BCM)5. Interior antenna 16. Interior antenna 27.

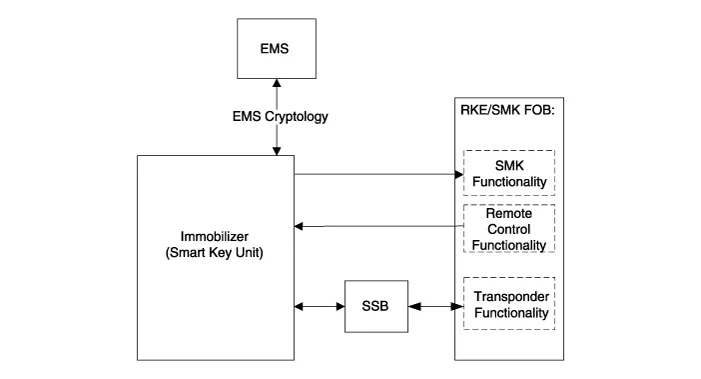

Description System Overview The System offers the following features: - Changing the state of engine ignition and power by using the start button.
