Hyundai Genesis: Parking Brake System / Electric Parking Brake (EPB) Schematic Diagrams

Hyundai Genesis (DH) 2013-2016 Service Manual / Brake System / Parking Brake System / Electric Parking Brake (EPB) Schematic Diagrams

Schematic Diagram
1.

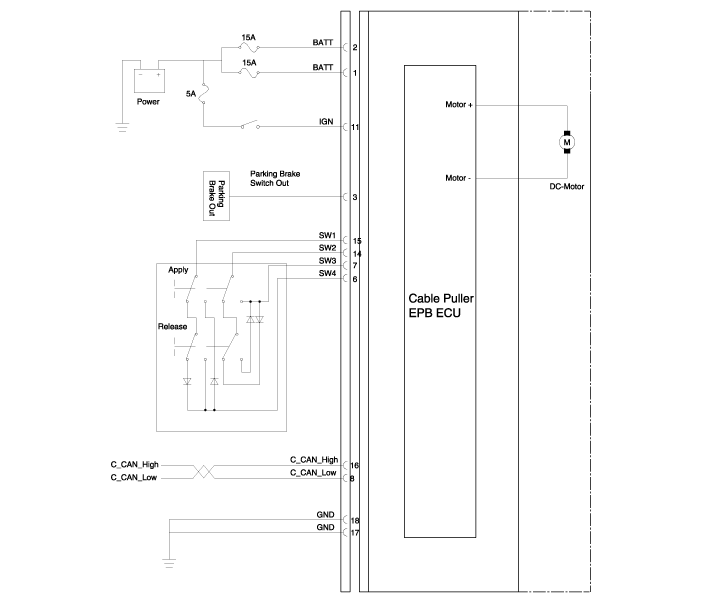

Circuit diagram

2.

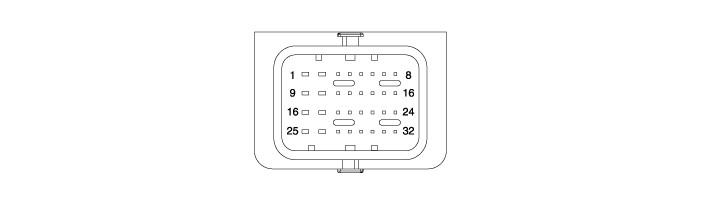

Connector terminal information

Terminal
Description
Current (m/A)
MAX
MIN
1
Battery (+)
12.5
-
2
Battery
12.5
-
3
Parking brake switch
20
-
4
-
-
-
5
-
-
-
6
Electric parking brake switch signal 4
10
5
7
Electric parking brake switch signal 3
10
5
8
C-CAN LOW
30
20
9
-
-
-
10
-
-
-
11
IGN
20
5
12
-
-
-
13
-
-
-
14
Electric parking brake switch signal 2
10
5
15
Electric parking brake switch signal 1
10
5
16
C-CAN HIGH
30
20
17
Ground
12.5
-
18
Ground
12.5
-
19
-
30
-
20
-
-
-
21
-
-
-
22
-
-
-
23
-
-
-
24
-
-
-
25
-
-
-
26
-
-
-
27
-
-
-
28
-
-
-
29
-
-
-
30
-
-
-
31
-
-
-
32
-
-
-
