Hyundai Genesis (DH): Parking Brake System / Electric Parking Brake (EPB) Components and Components Location

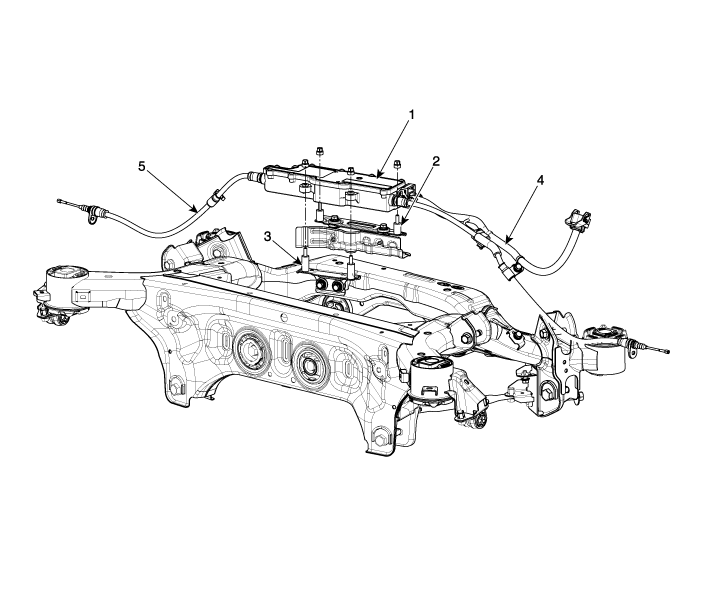

| Components |
| 1. EPB 2. Bracket No.1 3. Bracket No.2 | 4. EPB Extension wiring harness 5. Parking brake cable |
Description The EPB is an electronic parking brake. The EPB is different from existing parking systems which are operated with the brake pedal or the lever type.
Schematic Diagram 1. Circuit diagram 2. Connector terminal information TerminalDescriptionCurrent (m/A) MAXMIN1Battery (+)12.5-2Battery12.5-3Parking brake switch20-4---5---6Electric parking brake switch signal 41057Electric parking brake switch signal 31058C-CAN LOW30209---10---11IGN20512---13---14Electric parking brake switch signal 210515Electric parking brake switch signal 110516C-CAN HIGH302017Ground12.
