Components

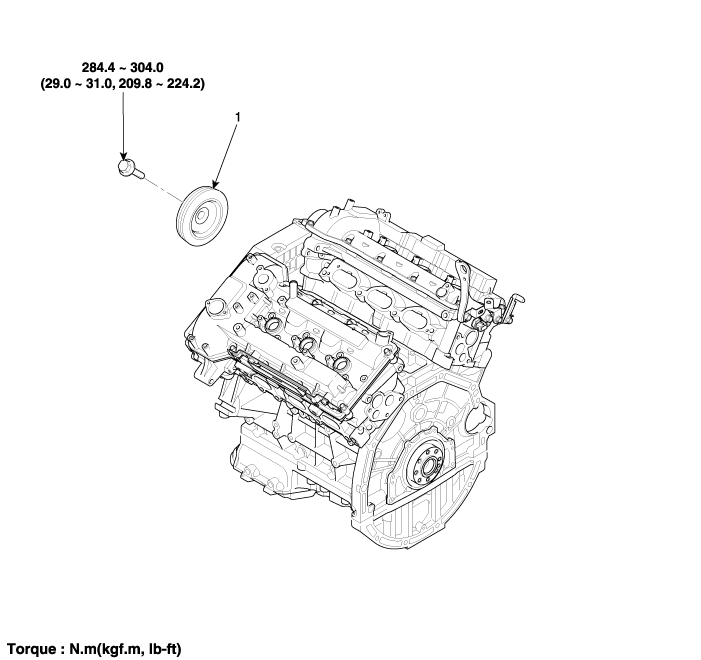

1. Crankshaft pulley

Drive Belt Tensioner Repair procedures
Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Drive Belt") 2. Remove the drive belt auto tensioner (A). Tightening torque Bolt (B) : 81.4 ~ 85.3 N.m (8.3 ...

Crankshaft Damper Pulley Repair procedures
Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Drive Belt") 2. Remove the engine under cover. 3. Remove the crankshaft pulley (A). Tightening torque : 2 ...
