Hyundai Genesis (DH): Body Dimensions / Rear Body Body Repair

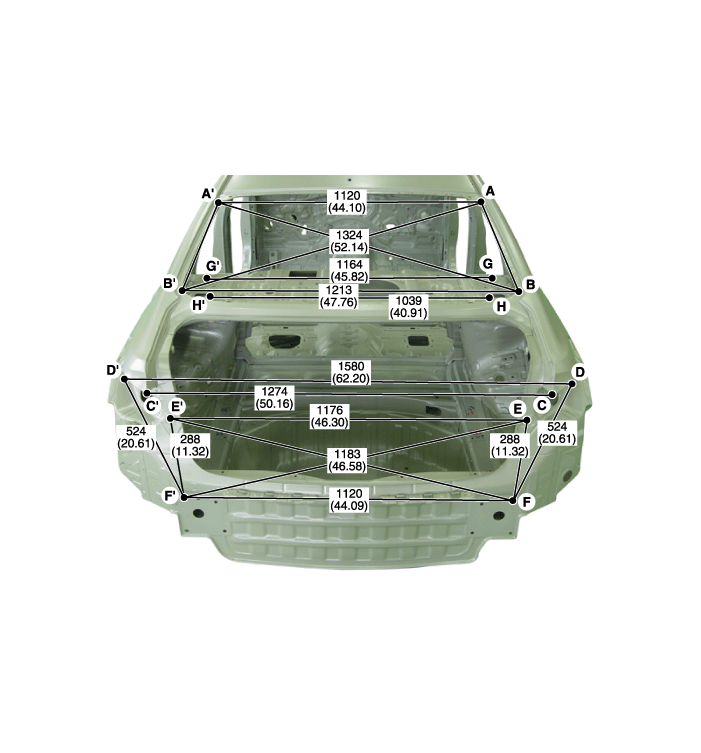

| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
|
|
|
| Side outer panel rear corner | Side outer panel rear corner | Side outer panel rear corner |
|
|
|
| Rear combination lamp mounting hole (O6.2) | Rear bumper mounting hole (8.7X8.7) | Rear bumper mounting hole (12X14) |
|
|
|
| Rear bumper mounting hole (12X14) | Rear seat belt retractor mounting hole (O15) | Trunk lid hinge mounting hole (O8) |
Interior A * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Interior B * These dimensions indicated in this figure are actual-measurement dimensions.
Projected Dimensions [2WD] * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] [4WD]Actual Measurement Dimensions * These dimensions indicated in this figure are actual-measurement dimensions.
