Hyundai Genesis: Power Trunk Module / Power Trunk Module Drive Unit Schematic Diagrams

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Power Trunk Module / Power Trunk Module Drive Unit Schematic Diagrams

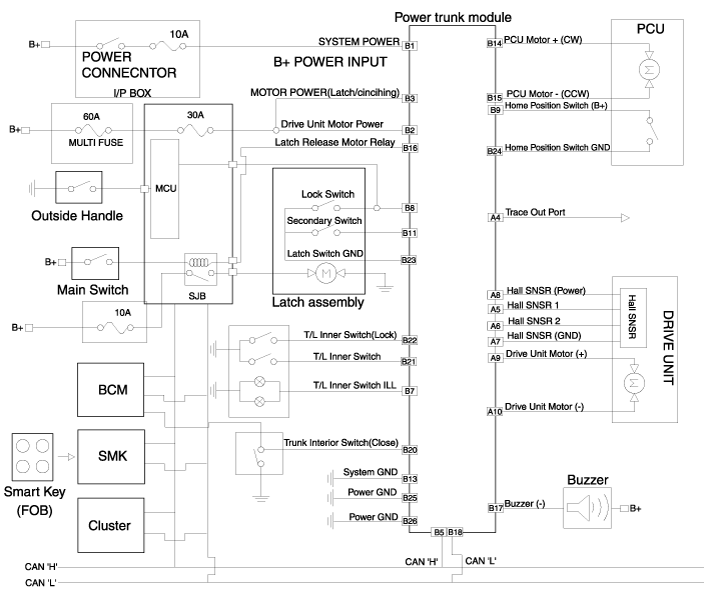

Circuit Diagram

Block Diagram

Power Trunk Module Drive Unit Components and Components Location
Component Location 1. PTM motor gear2. Sector gear3. Drive arm4. Push rod5. Push rod pin ...

Power Trunk Module Drive Unit Description and Operation
Description 1. Power trunk drive unit(Trunk open) A. The trunk open switch operates. (Trunk outside handle switch, Crash pad switch, SMK trunk open button) B. The power trunk motor operates ...
