Hyundai Genesis (DH): Crankcase Emission Control System / Positive Crankcase Ventilation (PCV) Valve Description and Operation

Hyundai Genesis (DH) 2013-2016 Service Manual / Emission Control System / Crankcase Emission Control System / Positive Crankcase Ventilation (PCV) Valve Description and Operation

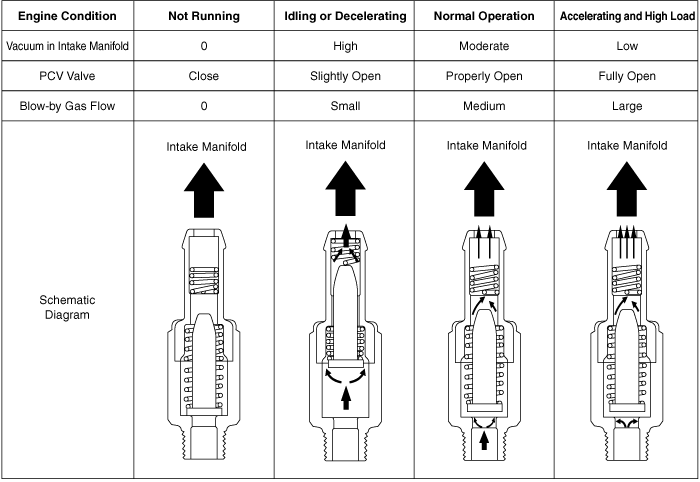

Operation Principle

    Inspection 1. After disconnecting the vapor hose from the PCV valve, remove the PCV valve. 2. Reconnect the PCV valve to the vapor hose. 3.

    Removal 1. Disconnect the vapor hose (A). 2. Remove the rubber pad (B), and then remove the PCV valve. Inspection 1. Insert a thin stick (A) into the PCV valve (B) of the threaded side to check that the plunger moves.

    Other information:

    Hyundai Genesis (DH) 2013-2016 Service Manual: Console Temperature Control Actuator Repair procedures

    Inspection 1. Turn the ignition switch OFF. 2. Disconnect the console temperature control actuator connector. 3. Verify that the console temperature control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.

    Hyundai Genesis (DH) 2013-2016 Service Manual: Auto Defogging Actuator Repair procedures

    Inspection 1. Turn the ignition switch OFF. 2. Disconnect the auto defogging connector. 3. Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the auto defogging actuator operates to the close position when connected in reverse.
