Hyundai Genesis (DH): Smart Cruise Control System / Smart Cruise Control Switch Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Electrical System / Smart Cruise Control System / Smart Cruise Control Switch Components and Components Location

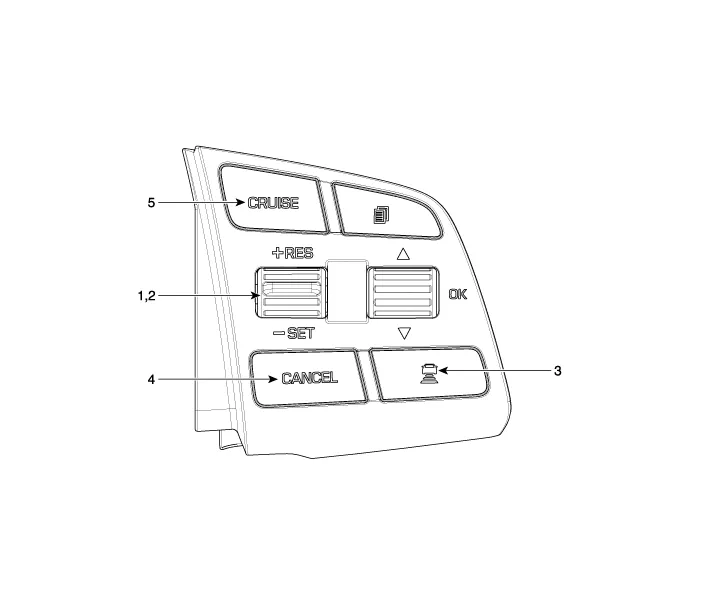

Components

1. SET - switch
2. RES + switch
3. SCC switch
4. CANCEL switch
5. CRUISE switch

    Removal 1. Remove the bumper. (Refer to Body - "Front Bumper") 2. Disconnect the smart cruise control unit connector. 3. Remove the smart cruise control unit assembly (A) from vehicle after loosening mounting bolts.

    Circuit Diagram
