Hyundai Genesis (DH): Smart Cruise Control System / Smart Cruise Control Switch Schematic Diagrams

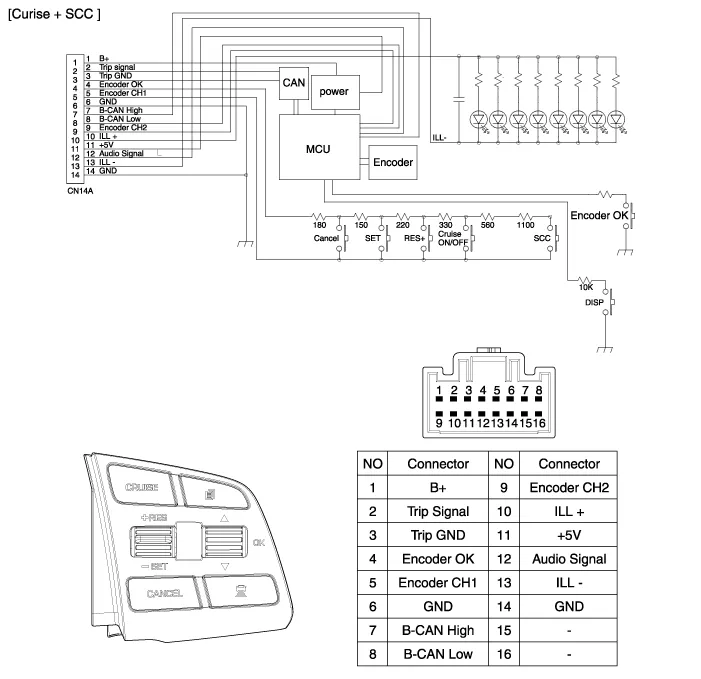

| Circuit Diagram |
Components 1. SET - switch2. RES + switch3. SCC switch4. CANCEL switch5. CRUISE switch
Inspection [Measuring Resistance] 1. Disconnect the cruise control switch connector from the control switch. 2. Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
