Hyundai Genesis (DH): IMS(Integrated Memory System) / Schematic Diagrams
| Components |

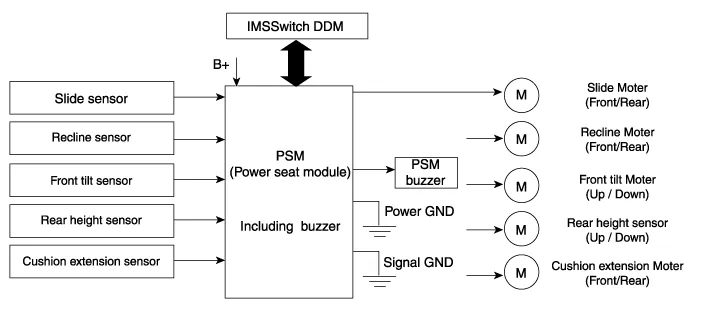

Components 1. Memory power seat unit (PSM module)2. IMS control switch3. Outside Mirror4. IMS mirror control (driver's power window switch)5. SCM module
Description The optimal seat position set by the driver is memorized into the power seat unit by using IMS switch. In case of the position change, the seat can restore its preset position by IMS switch.
