Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / IMS(Integrated Memory System) / Components and Components Location

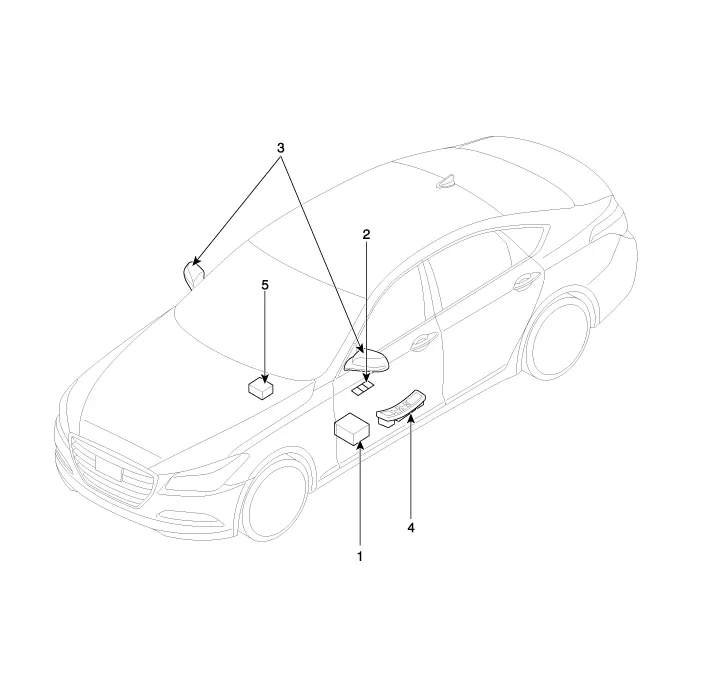

Components

1. Memory power seat unit (PSM module)
2. IMS control switch
3. Outside Mirror
4. IMS mirror control (driver's power window switch)
5. SCM module

    Specifications Memory power seat unit Item SpecificationsRated voltageDC 12VOperating VoltageDC 9V ~ 16VOperating Temperature Range-30
