Hyundai Genesis (DH): Cylinder Block / Rear Oil Seal Components and Components Location

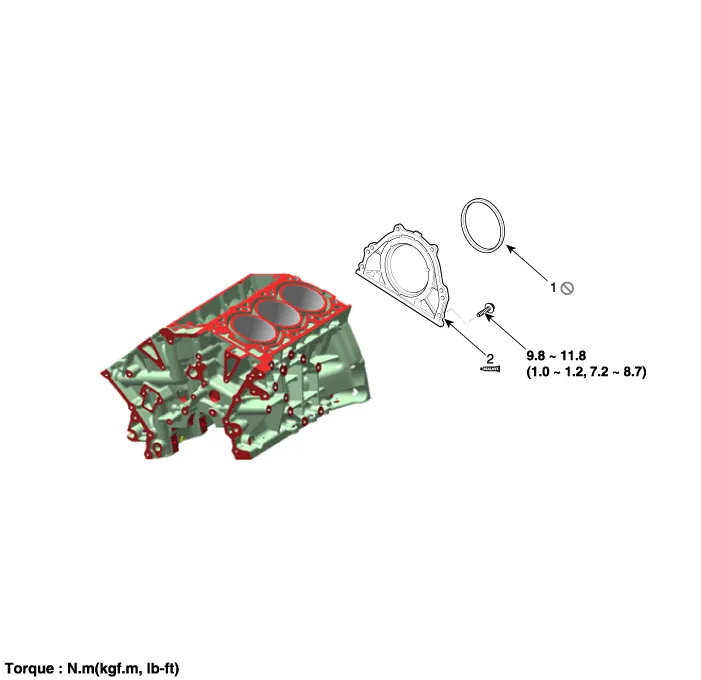

| Components |
| 1. Rear oil seal | 2. Rear oil seal case |
Removal and Installation 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the automatic transaxle . (Refer to Automatic Transaxle System - "Automatic Transaxle") 3.
Removal 1. Remove the drive plate and adapter plate. (Refer to Cylinder Block - "Drive Plate") 2. Remove the rear oil seal (A). Installation 1.
