Hyundai Genesis (DH): Rear Curtain System / Rear Curtain Switch Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Rear Curtain System / Rear Curtain Switch Components and Components Location

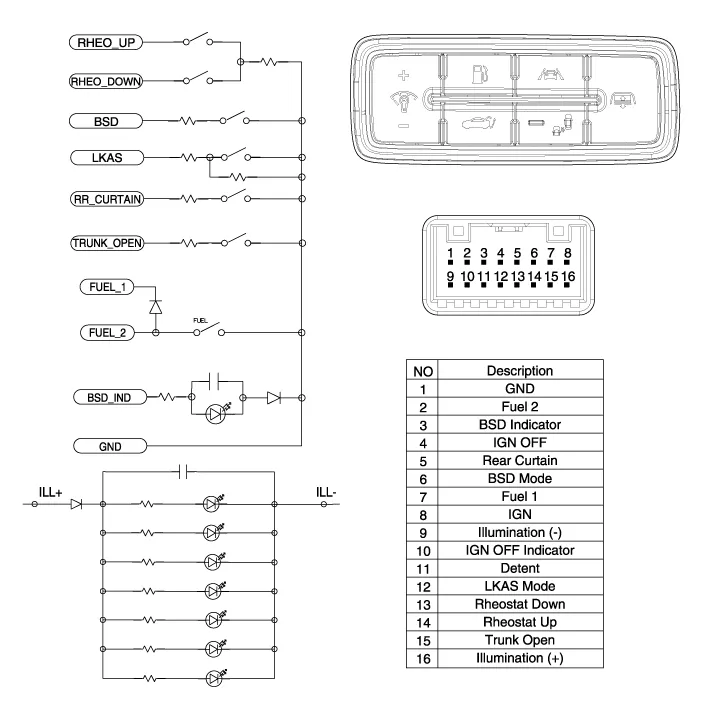

Components

    Inspection Connect the motor to battery and check the motor for proper operation. Then reverse the battery terminals to be connected and check that the motor operates properly in the reverse direction.

    Removal Crash pad lower panel switch 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 3.
