Hyundai Genesis (DH): Power Trunk Module / Power Trunk Open/Close Switch Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Power Trunk Module / Power Trunk Open/Close Switch Components and Components Location

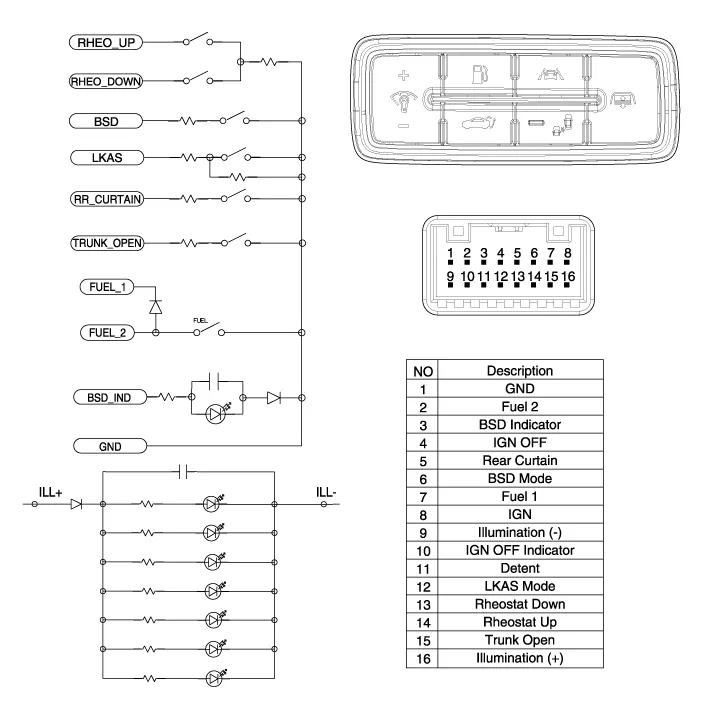

Components

    Inspection 1. Remove the trunk inner switch. 2. Check for continuity between terminals of the trunk inner switch. Removal 1. Disconnect the negative (-) battery terminal.

    Inspection 1. Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 2. Check for continuity between terminals (A) of the power trunk switch.

    Other information:

    Hyundai Genesis (DH) 2013-2016 Service Manual: Cluster Ionizer Repair procedures

    Inspection 1. Press the MODE switch more than 4 times within 2 seconds while pressing the OFF switch. DisplayFail description00Normal51Cluster ion generator fault * For diagnostic procedure, refer to DTC guide. Replacement 1. Disconnect the negative (-) battery terminal.

    Hyundai Genesis (DH) 2013-2016 Service Manual: Intake Actuator Repair procedures

    Inspection 1. Turn the ignition switch OFF. 2. Disconnect the intake actuator connector. 3. Verify that the intake actuator operates to the fresh position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the intake actuator operates to the recirculation position when connected in reverse.
