Hyundai Genesis (DH): Parking Brake System / Parking Brake Assembly Components and Components Location
| Components |
| 1. Parking brake pedal 2. Front parking brake cable | 3. Equalizer assembly 4. Rear parking brake cable |

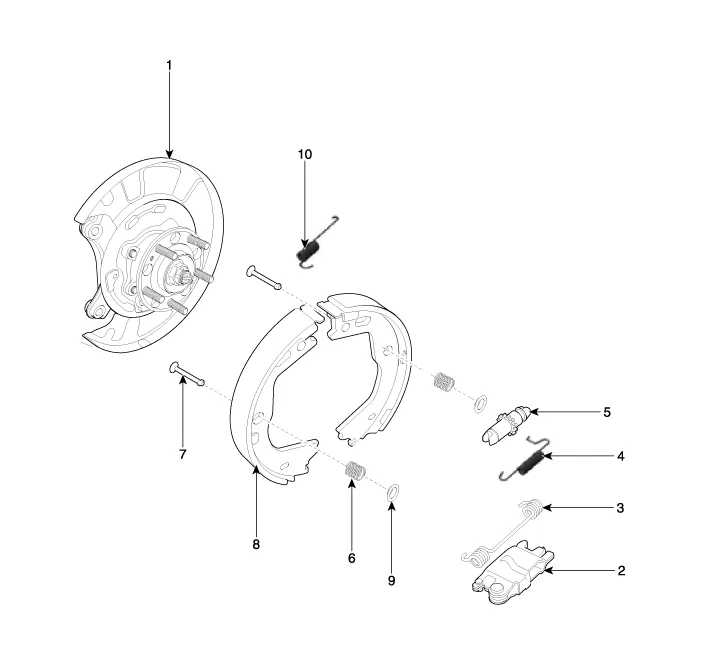

| Components Location |
| 1. Backing plate 2. Operating lever 3. Upper spring 4. Lower spring 5. Adjuster | 6. Shoe hold down spring 7. Shoe hold down pin 8. Parking brake shoe 9. Shoe hold down washer 10. Pull off spring |
Removal Parking Brake Pedal 1. Remove the crash pad lower panel. (Refer to Body - "Crash Pad") 2. Remove the IPM after removing the nut and connector.
