Hyundai Genesis (DH): Intake And Exhaust System / Intake Manifold Components and Components Location

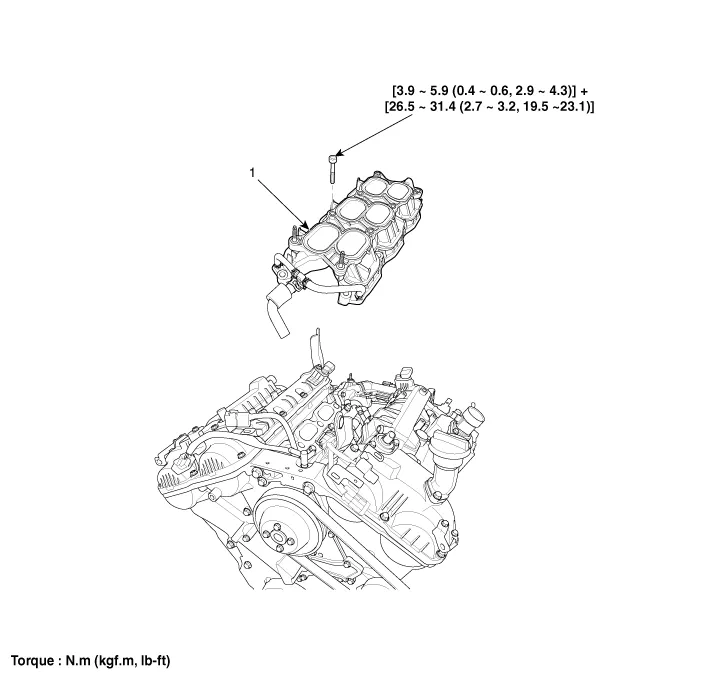

| Components |
| 1. Intake manifold |
Removal and Installation 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine cover. 3. Remove the engine room cover.
Removal and Installation 1. Remove the surge tank. (Refer to Intake and Exhaust System - "Surge Tank") 2. Remove the breather pipe & hose (A).
