Hyundai Genesis (DH): Hood / Hood Latch Release Handle Components and Components Location

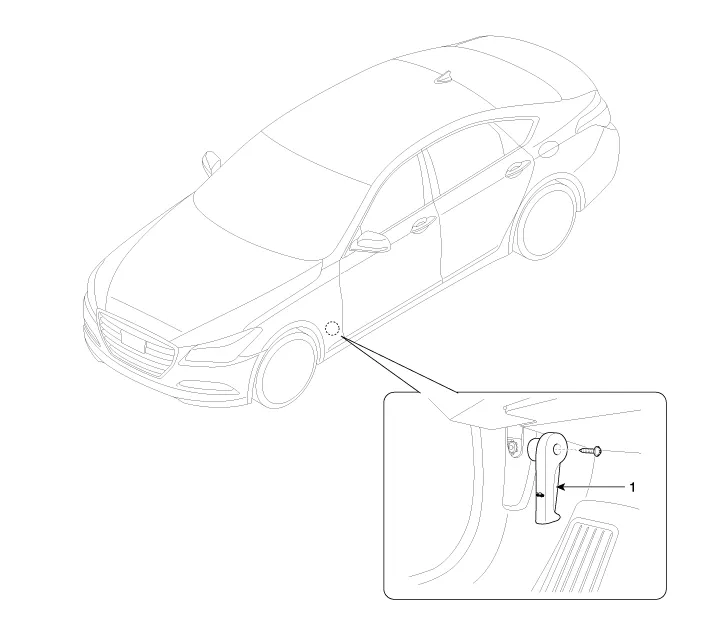

| Component Location |
| 1. Hood latch release handle |
Replacement 1. Remove the hood seal weatherstrip (A) and then remove the clip from the panel.
Replacement 1. After loosening the mounting screw, remove the hood latch release handle (A). 2. Install in the reverse order of removal.
