Hyundai Genesis (DH): Engine Control System / Fuel Pressure Control Valve Schematic Diagrams

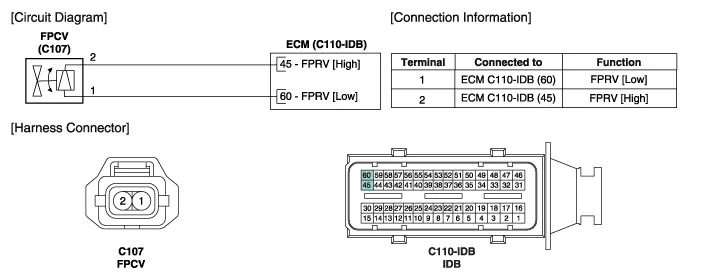

| Circuit Diagram |
Signal Waveform Idle rail pressure regulator waveform
Inspection 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disconnect the fuel pressure regulator valve connector.
