Hyundai Genesis (DH): Engine Control System / Fuel Pressure Control Valve Troubleshooting

Signal Waveform

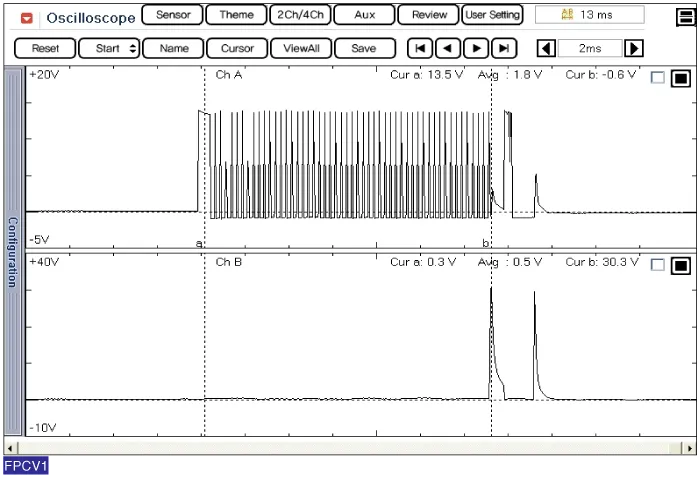

Idle rail pressure regulator waveform

    Specification ItemSpecificationCoil Resistance (?)1.04 ~ 1.27 [23

    Circuit Diagram
