Hyundai Genesis (DH): ESC(Electronic Stability Control) System / Front Wheel Speed Sensor Components and Components Location

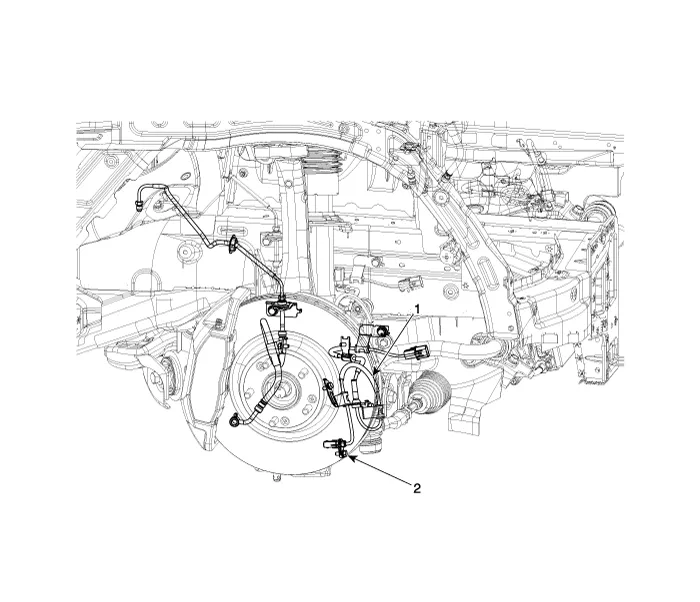

| Components |
| 1. Front wheel speed sensor cable | 2. Front wheel speed sensor |
Description Introduction of quick brake warning system (ESS) In case of quick brake by the driver, the brake lamp or turn signal blinks to warn against the vehicle approaching from the rear.
Removal [4WD] 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the front wheel and tire (A) from the front hub.
