Hyundai Genesis (DH): Front Seat Belt / Front Seat Belt Buckle Components and Components Location
Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Buckle Components and Components Location

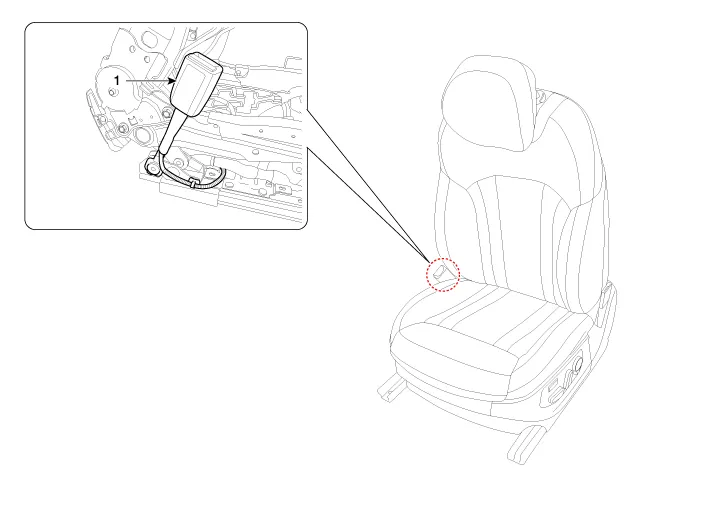

| Component Location |
| 1. Front seat belt buckle |
Replacement 1. Remove the front seat belt upper anchor. (Refer to Front Seat Belt - "Front Seat Belt Retractor") 2. After loosening the mounting bolts, remove the height adjustor (A).
Replacement 1. Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly") 2. Remove the two fixing clips using a flat-tip screwdriver, and then remove the front seat integration connector cover (B).
