Hyundai Genesis (DH): Timing System / Front Oil Seal Components and Components Location

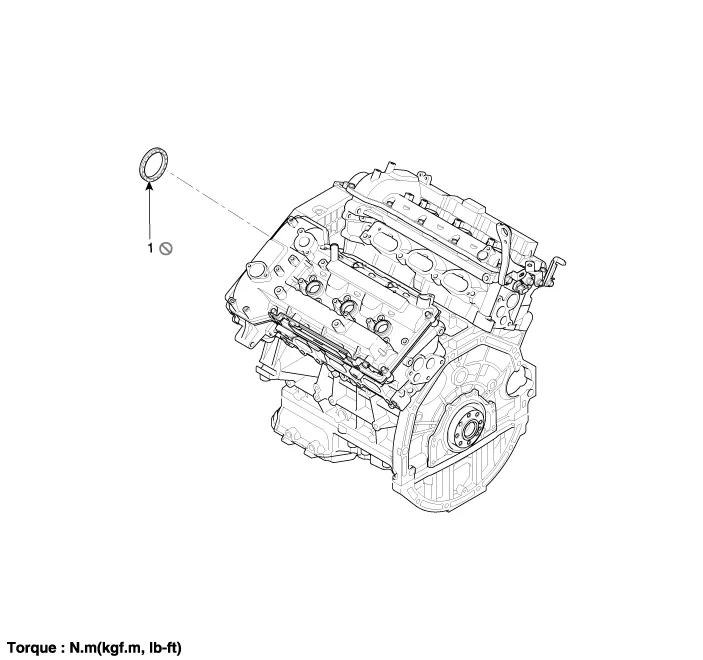

| Components |
| 1. Front oil seal |
Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Drive Belt") 2. Remove the engine under cover. 3. Remove the crankshaft pulley (A).
Removal 1. Remove the crankshaft pulley. (Refer to Timing System - "Crankshaft Pulley") 2. Remove the timing chain cover oil seal (A). Installation 1.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Heater Unit Components and Components Location
Component Location Components (1) 1. Shower duct (Left)2. Mode actuator (LH)3. Temperature control actuator (LH)4. Temperature door lever (Left)5. Mode actuator (A)6. Console temperature actuator (A)7. Console mode actuator ON/OFF8. Heater case (Left)9.
Hyundai Genesis (DH) 2013-2016 Service Manual: Temperature Control Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the temperature control actuator connector. 3. Verify that the temperature control actuator operates to the warm (Driver's side) or cool (Passenger's side) position when connecting 12V to terminal 3 and grounding terminal 4.
