Hyundai Genesis (DH): Hydraulic System / Fluid Components and Components Location
| Components Location |

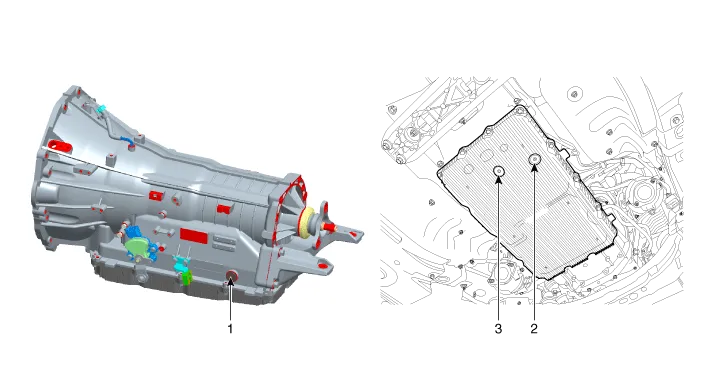

| 1. Oil injection hole 2. Oil level check plug | 3. Oil drain plug |
Components Location 1. Oil seal2. Reaction shaft3. Housing4. Cover5. O-Ring6. Reaction shaft7. Snap ring8. Needle bearing9. 8LR/B return spring10.
Service Adjustment Procedure Oil level Check The ATF level check is not normally required during scheduled services. If an oil leak is found, perform the oil level check procedure after repairs are completed.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Receiver-Drier Repair procedures
Replacement 1. Remove the condenser. 2. Remove the cap (B) on the bottom of the condenser with the L wrench (A). Tightening torque : 9.81 ~ 14.71 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft) 3. Remove the receiver-drier (A) from condenser using a long nose plier.
Hyundai Genesis (DH) 2013-2016 Service Manual: Console Temperature Control Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the console temperature control actuator connector. 3. Verify that the console temperature control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.
