Hyundai Genesis (DH): Body Dimensions / Cross Member Body Repair
| Front Cross Member |

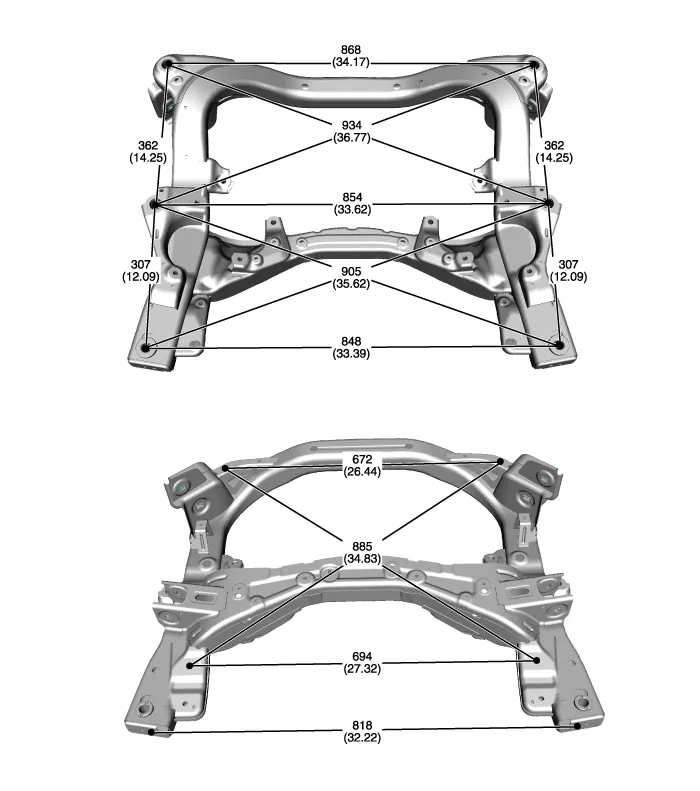

| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |

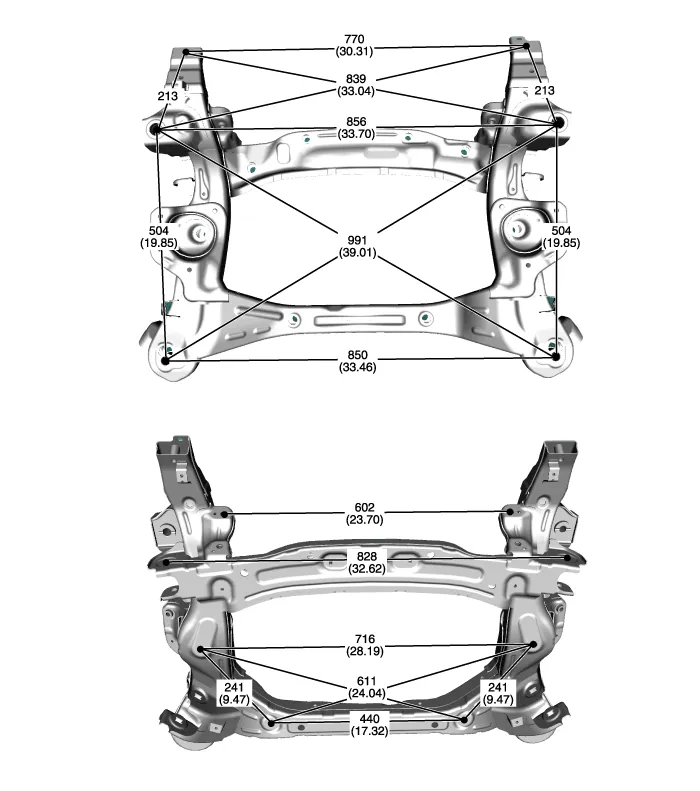

| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
| Rear Cross Member |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
Projected Dimensions [2WD] * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] [4WD]Actual Measurement Dimensions * These dimensions indicated in this figure are actual-measurement dimensions.
