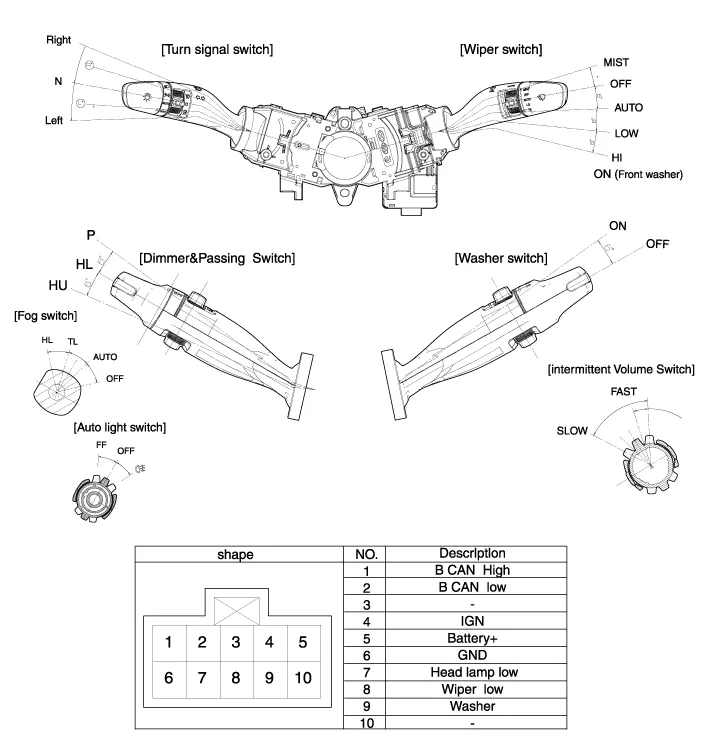

Hyundai Genesis (DH): Multifunction Switch / Components and Components Location

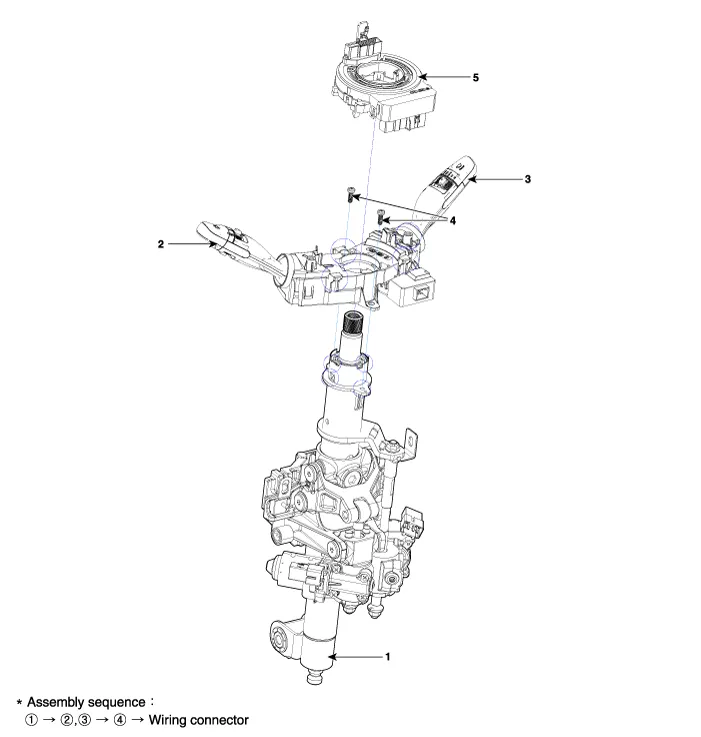

| Component |
| 1. Steering column 2. Lighting switch 3. Wiper switch | 4. Screw 5. Clock Spring |
Specifications ItemsSpecificationsRated voltageDC 12VOperating temperature range-22 ~ +176
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the steering column upper shrouds (A). (Refer to Body - "Steering Column Shroud Panel") 3.
