Hyundai Genesis (DH): Panorama Sunroof / Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Panorama Sunroof / Components and Components Location

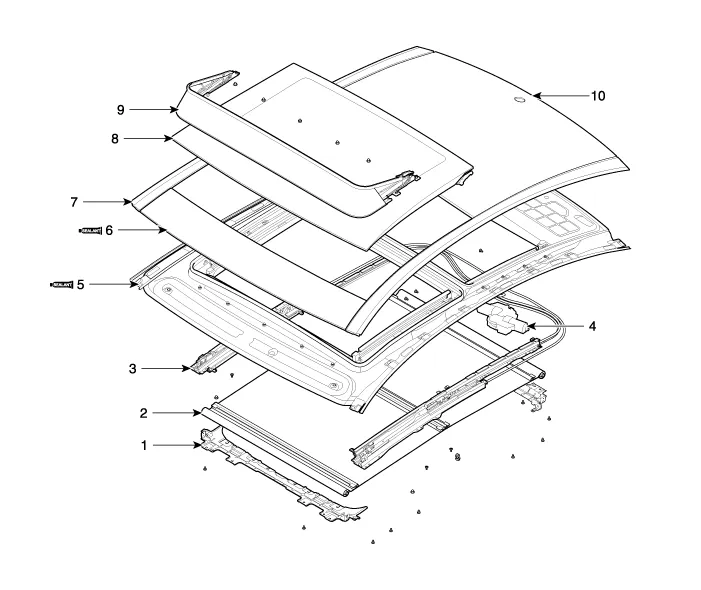

Components

1. Roller blind bracket
2. Roller blind
3. Mechanism rail assembly
4. Motor
5. Panorama sunroof frame assembly
6. Front glass
7. Roof side moulding
8. Movable glass
9. Wind deflector
10. Rear glass

    Adjustment Inspect Glass Alignment 1. Check the alignment of the movable glass (C) located between the front (A) and rear (B) glass and adjust it if necessary.
