Hyundai Genesis (DH): Autonomous Emergency Braking(AEB) System / Components and Components Location

Components
components and components location

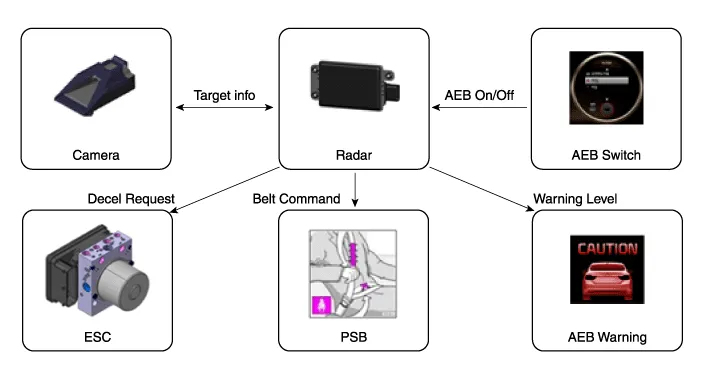

AEB system consists of the following systems
Device to detect a potential obstacle forward (radar, cameras)
Human-Machine Interface (HMI) to warn the driver and change settings
Braking device for generating a braking force

    Description AEB(Autonomous Emergency Braking) is a function purposed to avoid the collision or to reduce the damage against the accident which can be taken place from the late braking or insufficient braking power due to the reason of absented mind of the driver.

    Driver settings AEB function ON/OFF switch is included in USM (User Setting Menu) and the state when being released from factory is ON. With the IGN ON, the ON condition is maintained by default and the drivers
