Hyundai Genesis (DH): Front Suspension System / Components and Components Location
| Components Location |

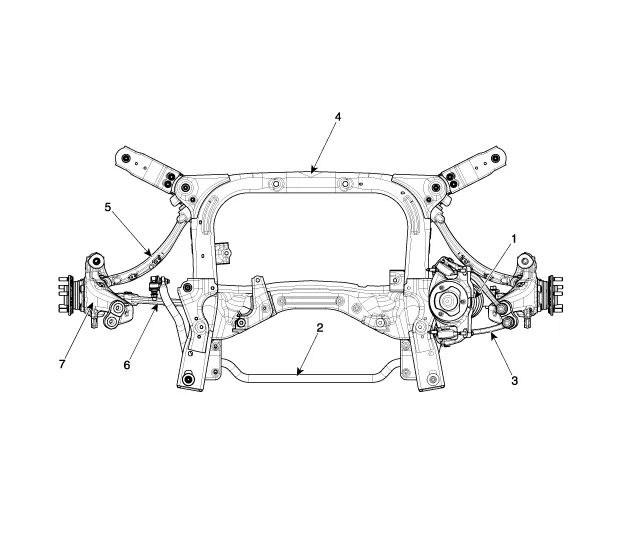

| [2WD] |
| 1. Front shock absorber assembly 2. Front stabilizer bar 3. Front upper arm 4. Front sub frame | 5. Tension arm 6. Lateral arm 7. Front knuckle assembly |

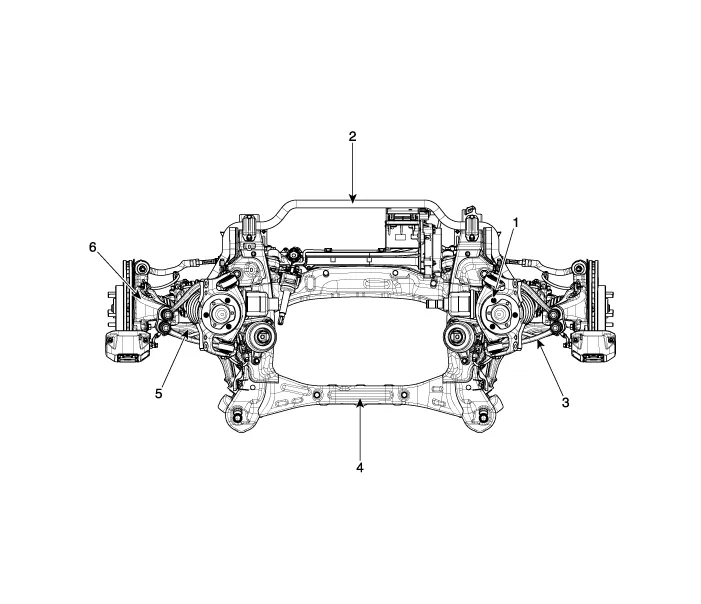

| [4WD] |
| 1. Front shock absorber assembly 2. Front stabilizer bar 3. Front upper arm | 4. Front sub frame 5. Compression arm 6. Front knuckle assembly |
Components [2WD] 1. Insulator cap2. Insulator assembly3. Spring upper pad4. Dust cover 5. Bump stopper6. Coil spring7. Spring lower pad8. Shock absorber [4WD] 1.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Mode Control Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the mode control actuator connector. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4. Verify that the mode control actuator operates to the vent mode when connected in reverse.
Hyundai Genesis (DH) 2013-2016 Service Manual: Auto Defogging Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the auto defogging connector. 3. Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the auto defogging actuator operates to the close position when connected in reverse.
