Hyundai Genesis (DH): Front Suspension System / Front Strut Assembly Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Suspension System / Front Suspension System / Front Strut Assembly Components and Components Location

Components

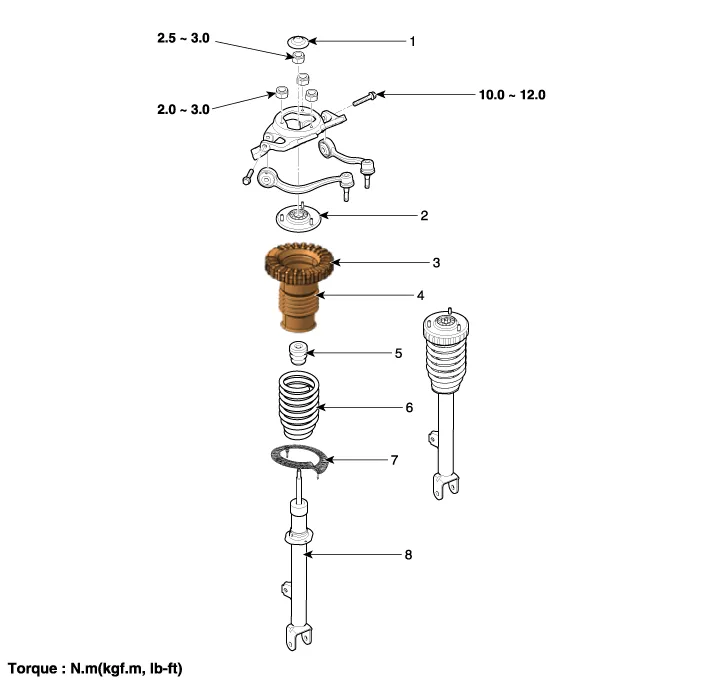

[2WD]

1. Insulator cap
2. Insulator assembly
3. Spring upper pad
4. Dust cover
 5. Bump stopper
6. Coil spring
7. Spring lower pad
8. Shock absorber

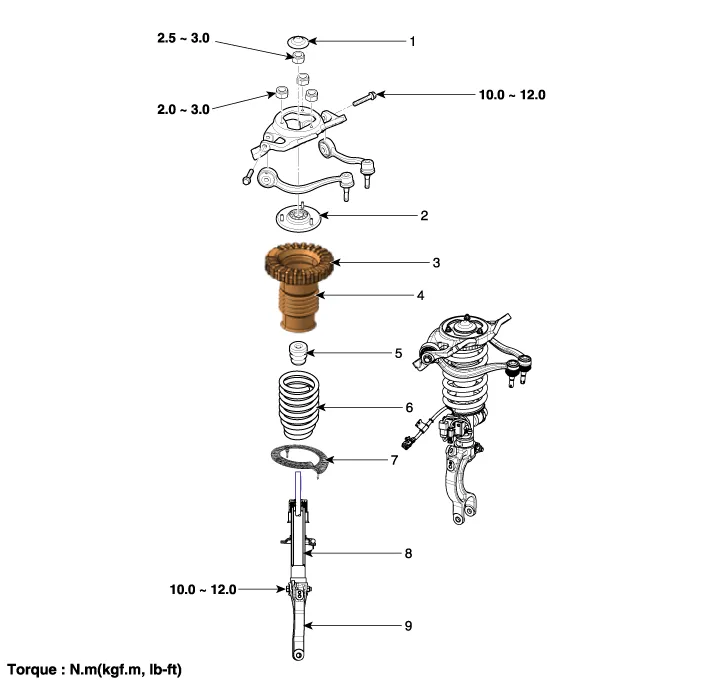

[4WD]

1. Insulator cap
2. Insulator assembly
3. Spring upper pad
4. Dust cover
5. Bump stopper
6. Coil spring
7. Spring lower pad
8. Shock absorber
9. Fork

    Components Location [2WD] 1. Front shock absorber assembly2. Front stabilizer bar3. Front upper arm4. Front sub frame5. Tension arm6. Lateral arm7.

    Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel and tire (A) from the front hub.
